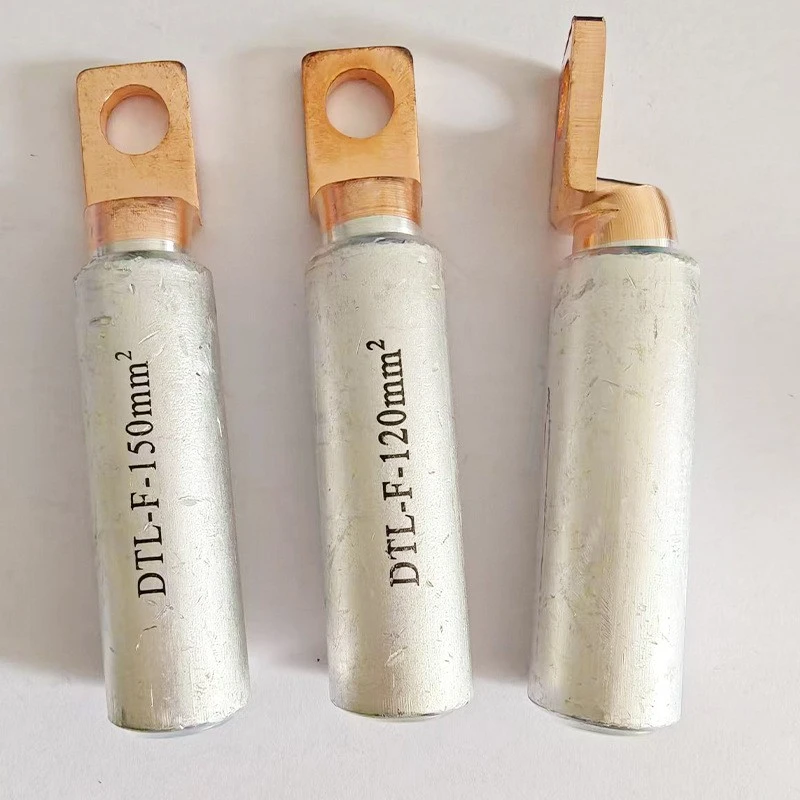

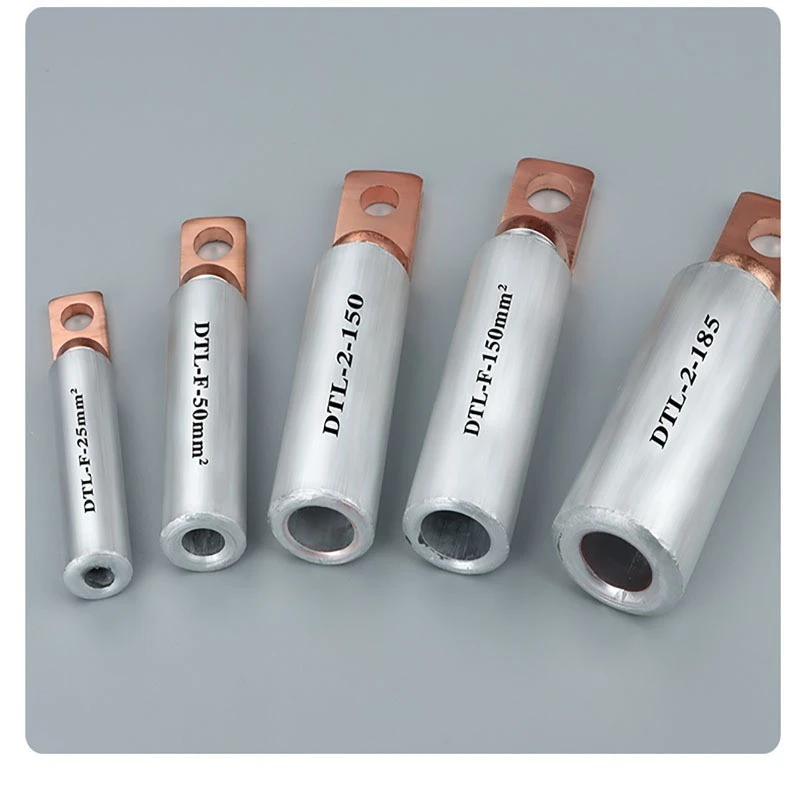

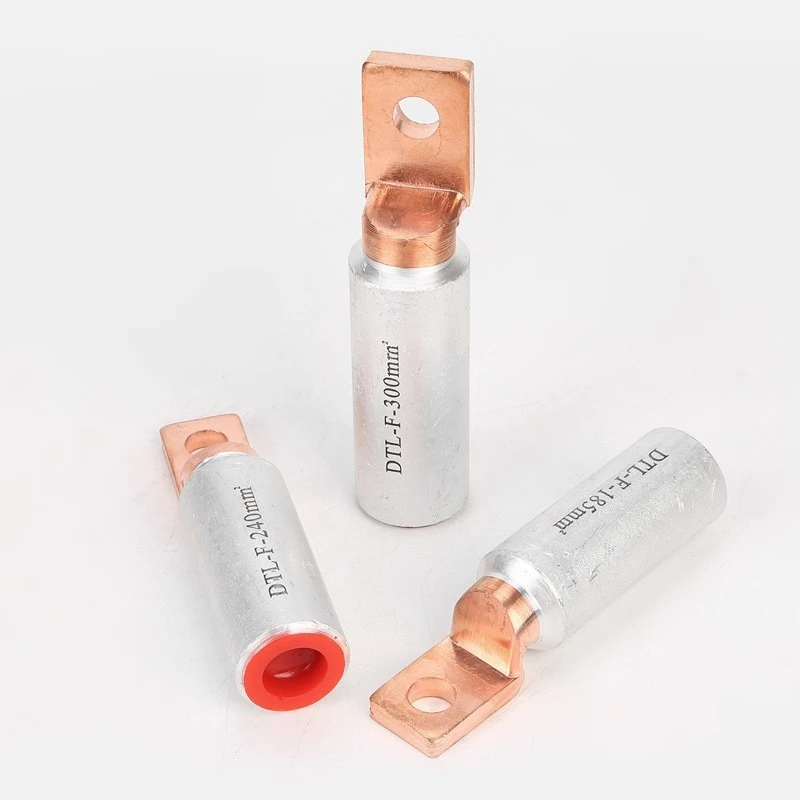

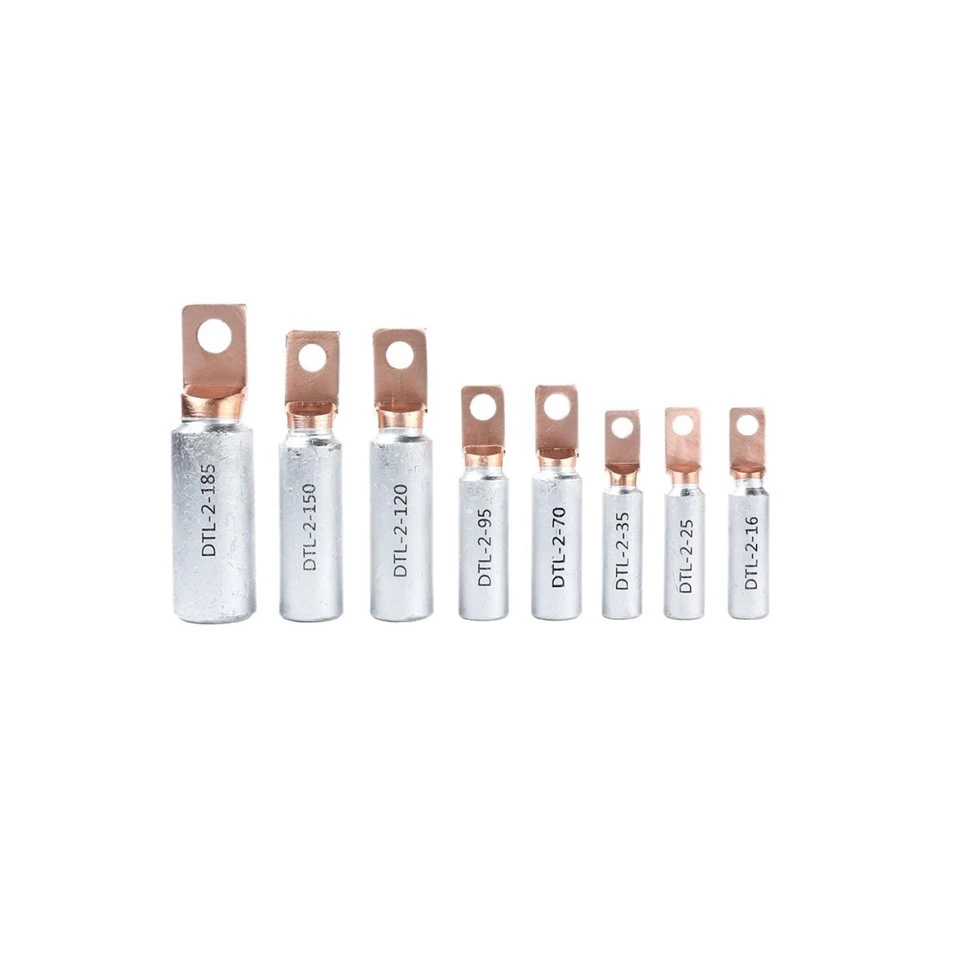

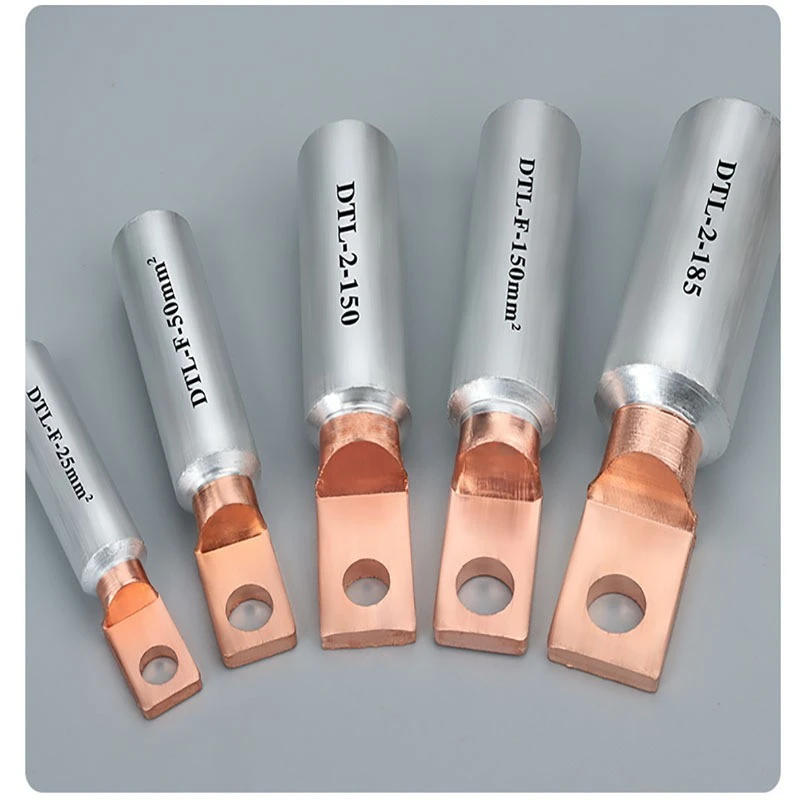

DTLF Copper Aluminum Cable Lug
DTLF copper aluminum cable lugs are specially designed transition connectors for power distribution systems.They’re mainly used to connect aluminum-core cables to the copper terminals on various electrical equipment in power distribution system.This way, DTLF copper aluminum cable lugs perfectly solve the connection problem between aluminum and copper conductors in electrical projects.
Description
Wenzhou Lanen Electrical Co., Ltd. is one of the leading manufacturers and suppliers of dtlf copper aluminum cable lug in China. We are committed to provide high quality customized products with low price. If you're going to buy advanced dtlf copper aluminum cable lug made in China, welcome to get more discount information from our factory.
Description
DTLF copper aluminum cable lugs are specially designed transition connectors for power distribution systems.They're mainly used to connect aluminum-core cables to the copper terminals on various electrical equipment in power distribution system.This way, DTLF copper aluminum cable lugs perfectly solve the connection problem between aluminum and copper conductors in electrical projects.
This product uses high-quality standardized raw materials. The aluminum profile is made of L2 industrial pure aluminum, and the copper profile is made of high-purity T2 red copper, ensuring stable inherent properties of the material. Adopting advanced friction welding technology for overall molding. Compared with traditional connection processes, it has the characteristics of high welding density, strong bonding, and excellent welding strength, avoiding fracture, virtual connection, and separation under long-term load or mechanical stress.
Due to its excellent overall molding quality, DTLF copper aluminum cable lugs has low overall resistivity and excellent conductivity, which can reduce current loss and connection heating during power transmission. At the same time, the structural design effectively isolates the copper aluminum contact interface, greatly suppressing the electrochemical corrosion caused by the reaction of two different metals, and adapting to complex and humid working environments.
DTLF copper aluminum cable lugs have reliable mechanical stability, strong voltage resistance, and excellent weather resistance, significantly extending their service life. They are easy to crimp and install, safe and durable, widely used in distribution boxes, switchgear, industrial electrical and power transformation projects, and are ideal connectors for safe and efficient copper aluminum circuit transitions.

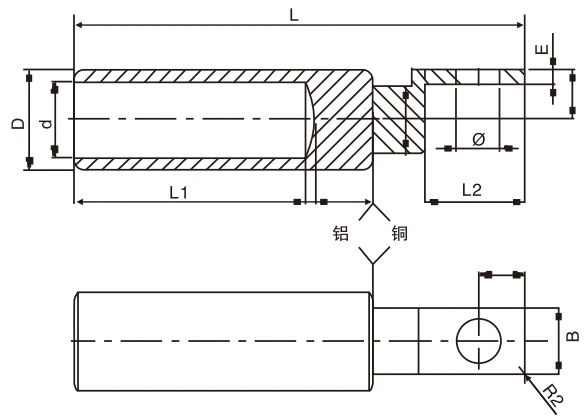

Parameter
|
Square(mm) |
Dimensions(mm) |
|||||||
|
Ø |
D |
d |
L1 |
L2 |
B |
E |
L |
|
|
10 |
8.5 |
16 |
4.8 |
42 |
22 |
14 |
4.5 |
85 |
|
16 |
8.5 |
16 |
5.5 |
42 |
22 |
14 |
4.5 |
85 |
|
25 |
8.5 |
16 |
7 |
42 |
22 |
14 |
4.5 |
85 |
|
35 |
8.5 |
16 |
8.5 |
42 |
22 |
14 |
4.5 |
85 |
|
50 |
8.5 |
20 |
9.5 |
50 |
24 |
16 |
5.5 |
96 |
|
70 |
8.5 |
20 |
12 |
50 |
24 |
16 |
5.5 |
96 |
|
95 |
8.5 |
20 |
13 |
50 |
24 |
16 |
5.5 |
96 |
|
120 |
10.5 |
25 |
14 |
62 |
31 |
22 |
7 |
122 |
|
150 |
10.5 |
25 |
16 |
62 |
31 |
22 |
7 |
122 |
|
185 |
13 |
32 |
18 |
65 |
36 |
26 |
7.5 |
130 |
|
240 |
13 |
32 |
20 |
65 |
36 |
26 |
7.5 |
130 |
|
300 |
13 |
34 |
23.2 |
70 |
42 |
32 |
8 |
142 |
|
400 |
13 |
40 |
26 |
75 |
42 |
32 |
8 |
155 |
