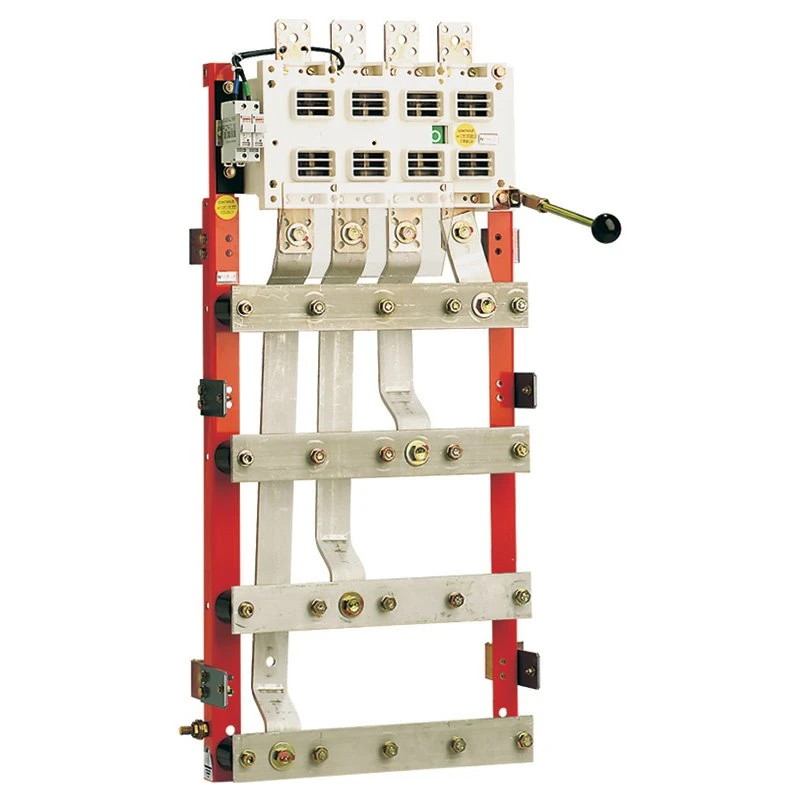

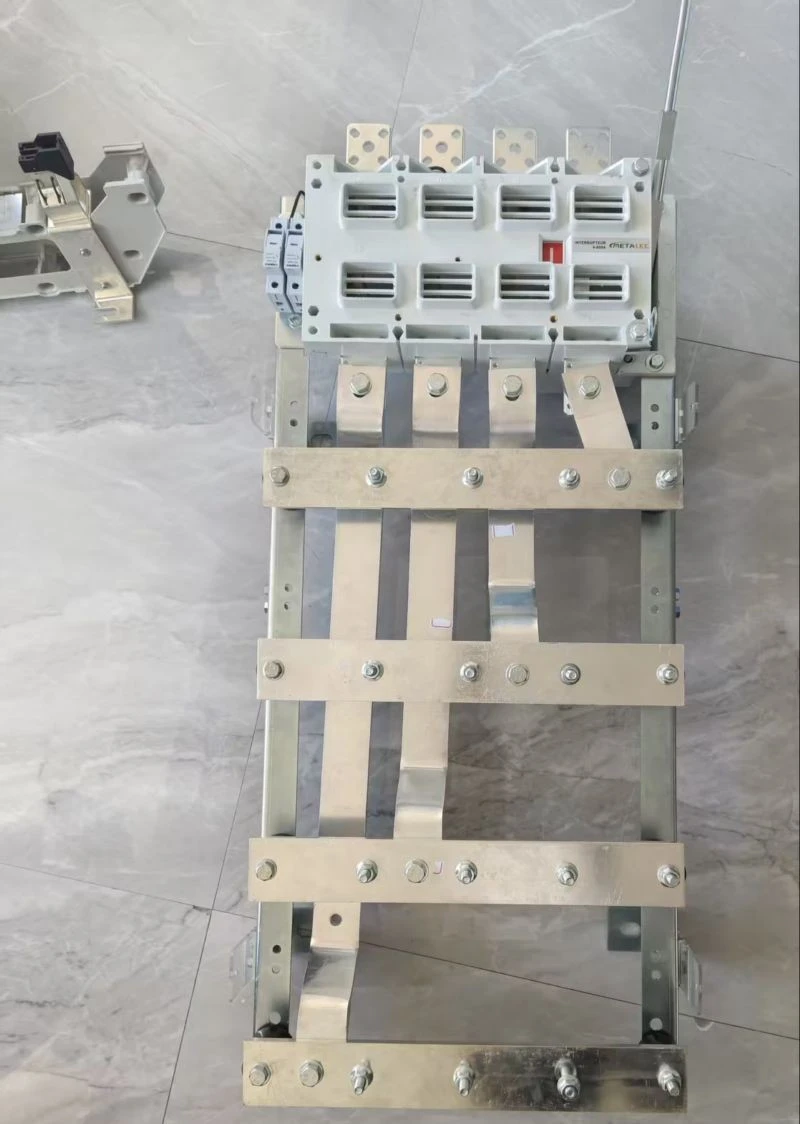

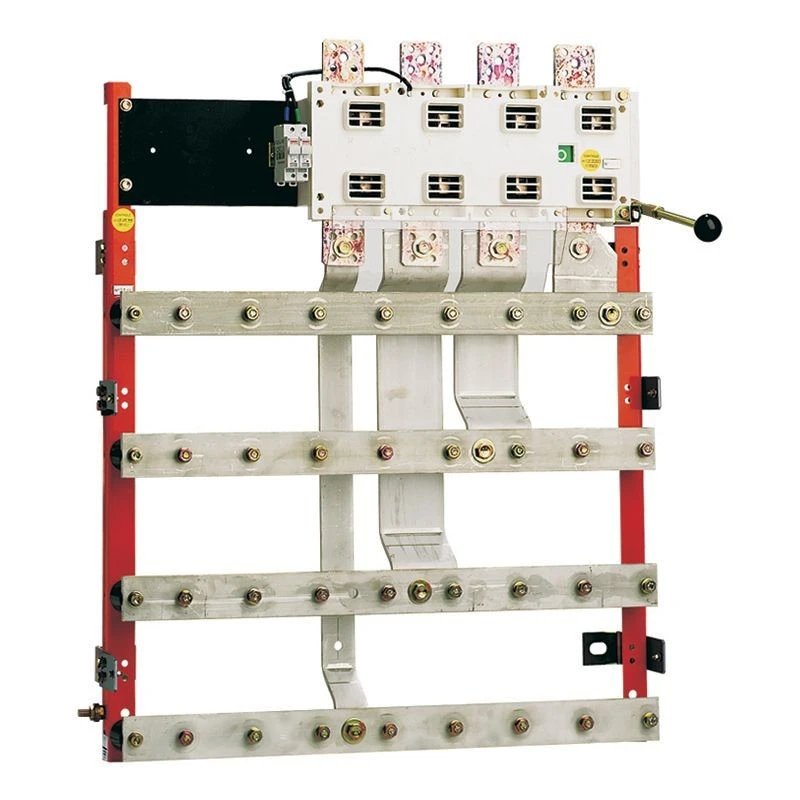

LV Distribution Panelboard
TUR8-1200 without ACG pre-wiring
LV Distribution Panelboard TUR8-1200 panelboard ACG wiring
TUR LV distribution panelboard is used to protect and control low-voltage (LV) distribution networks in medium-voltage/low-voltage (MV/LV) substations. It’s installed right after the 630kVA transformer.
Description
Wenzhou Lanen Electrical Co., Ltd. is one of the leading manufacturers and suppliers of lv distribution panelboard in China. We are committed to provide high quality customized products with low price. If you're going to buy advanced lv distribution panelboard made in China, welcome to get more discount information from our factory.
Product Details
LV Distribution Panelboard TUR8-1200 panelboard ACG wiring
TUR LV distribution panelboard is used to protect and control low-voltage (LV) distribution networks in medium-voltage/low-voltage (MV/LV) substations. It's installed right after the 630kVA transformer.
LV Distribution Panelboard comes with a four-pole LV load break switch that has a visible break point. LV Distribution Panelboard also features interchangeable 400A outgoing feeders with a distributed neutral system. Each of these feeders is fitted with three voltage-operable fuses, plus a rotary link that lets you disconnect the neutral wire when needed.
◎Easily supply the electric power with a small-scale and adjustable configuration (up to 4, 5 or 8 outgoing feeders),
◎Isolate the low voltage by switch disconnector (power up to 1000kVA).
◎Protect by HPC fuses the outgoing feeders.
TUR panelboards comprise:
• A four-phases load break switch-disconnector with a visible opening: 800 A, 1200 A or 1800 A.

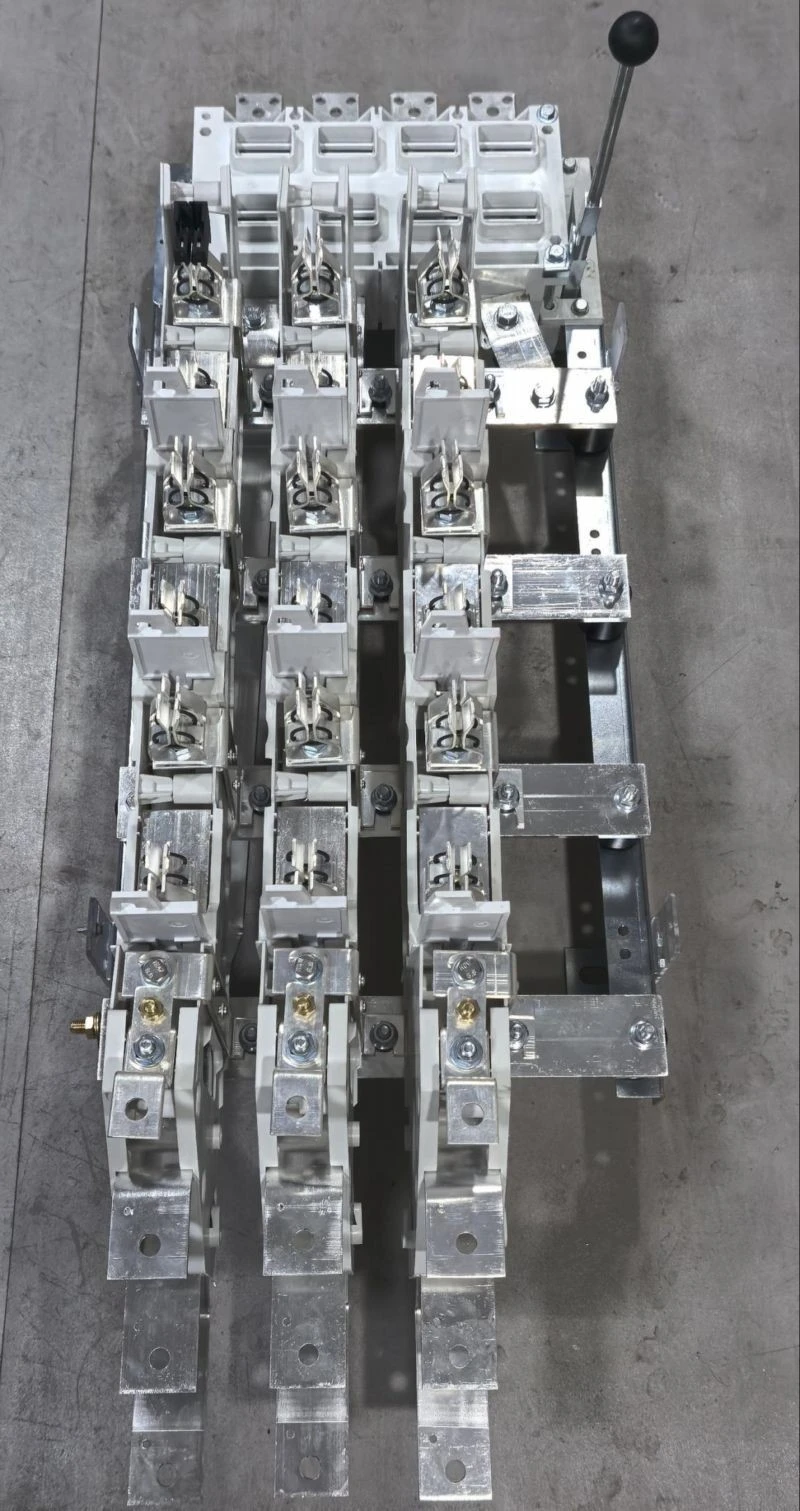

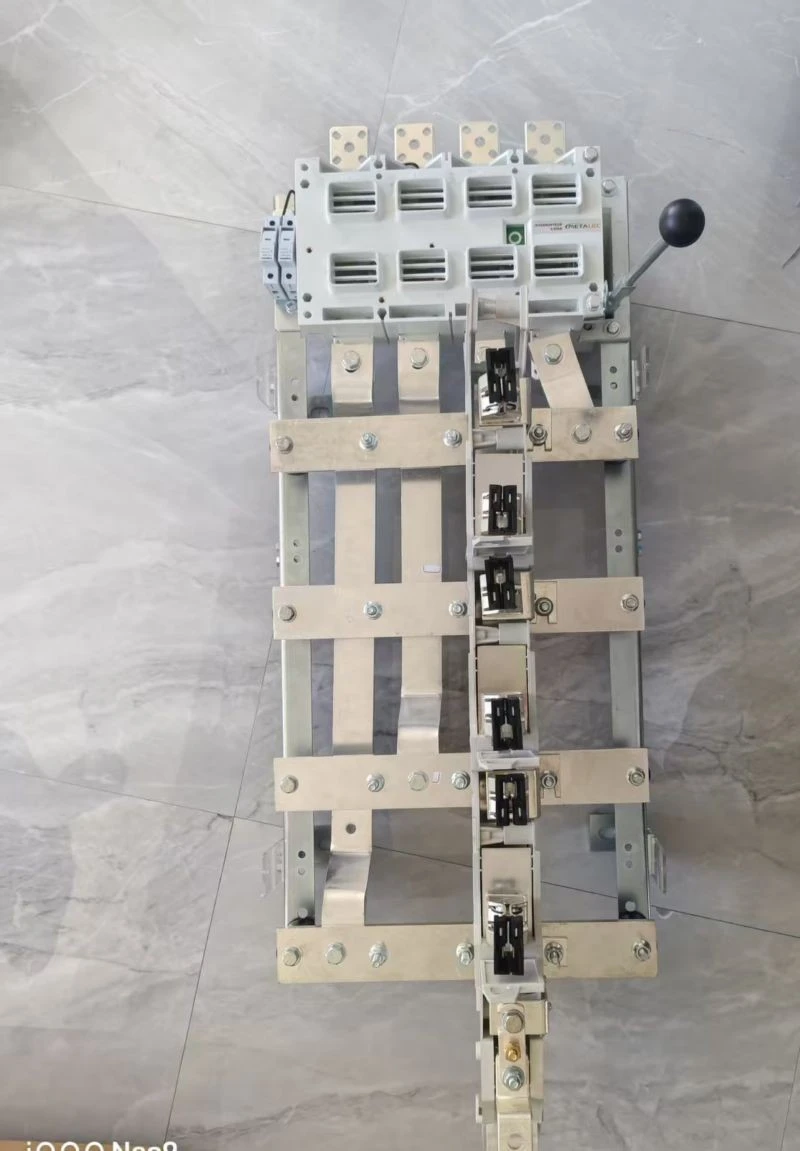

• Low-voltage outgoing feeders are fully interchangeable, fitted with three load-operable fuses rated up to 400A. Easily cut off the neutral line using the built-in rotary lever.
• Optional:
- Public lighting protection device (ACG).
- Station lighting protection device (EP).
- Reservation panels (to avoid active parts touching when no outgoing feeder is mounted on the panelboard).
- Lock panels (to condemn an outgoing feeder when fuses are removed)
Electrical characteristics
+ Rated voltage 440 V
+ Rated current of LV Switch and bus-bar 1200 A
+ Rated current of LV Outgoing Feeders 400 A
+ Rated current of LV Public lightning protection device (ACG) 60 A
+ Rated frequency 50 Hz
Dielectric withstand:
+ Rated power-frequency withstand voltage (1min)
- Between poles and frame (to ground) 10 kV
- Between phases 4 kV
- Across isolating distance 4 kV
+ Rated lightning impulse withstand voltage (1.2/50µs)
- Between poles and frame (to ground) 20 kV
Rated mainly active load-breaking current
+ Under 440 V at cosφ=0.9 1200 A
Rated short-circuit making current: Irms / Ipeak
+ Under 440 V with fuses (at cosφ=0.35) 25 kA / 52 kÂ
Rated short-time withstand current (duration 0.5s): Irms / Ipeak
+ LV Switch and bus-bar (at cosφ=0.35) 25 kA / 52 kÂ
+ LV Outgoing Feeders (at cosφ=0.2) 32 kA / 72 kÂ
+ LV Public lightning protection device (ACG) (at cosφ=0.35) 25 kA /52kA
