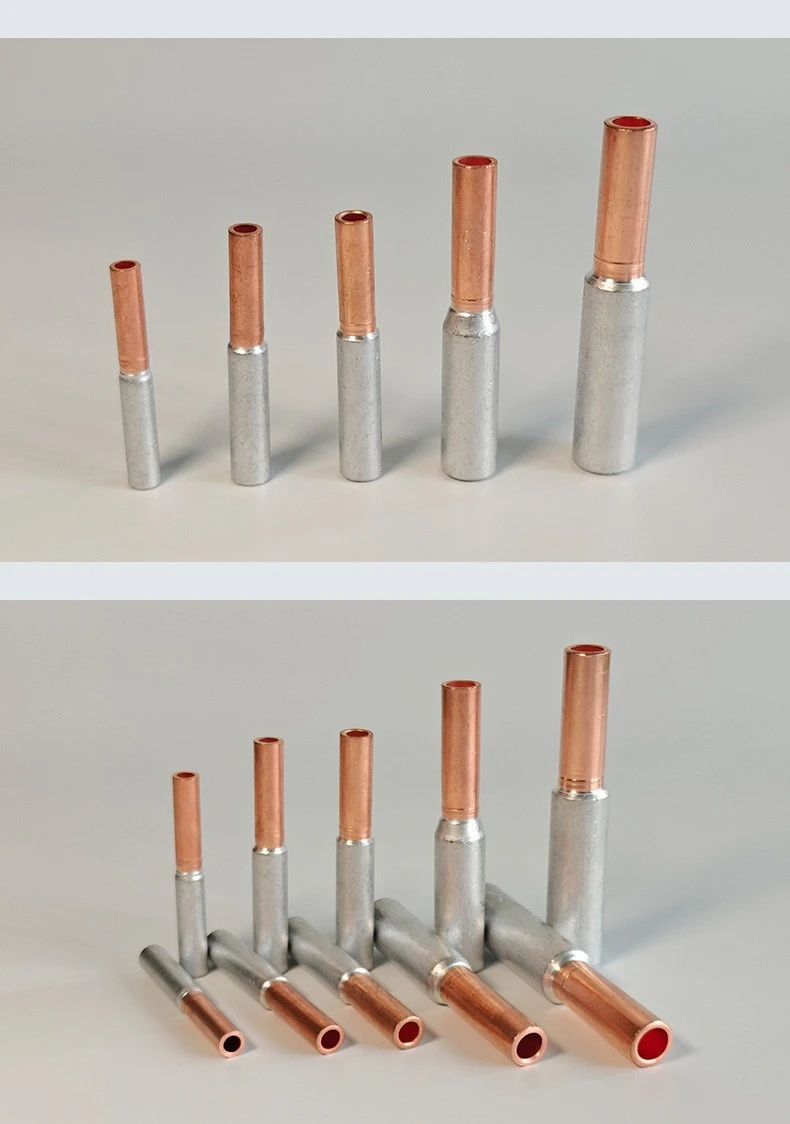

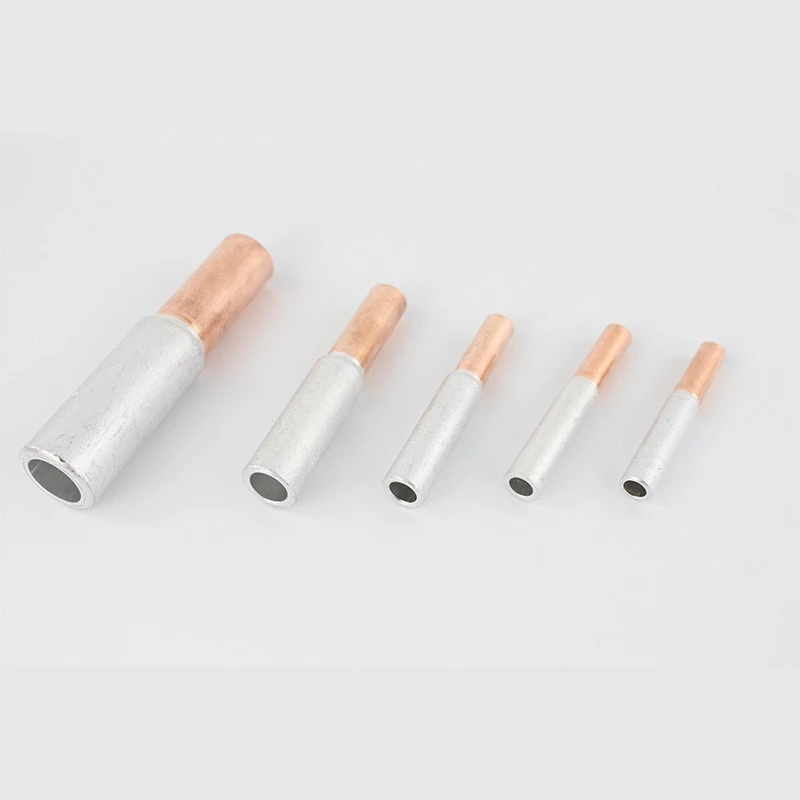

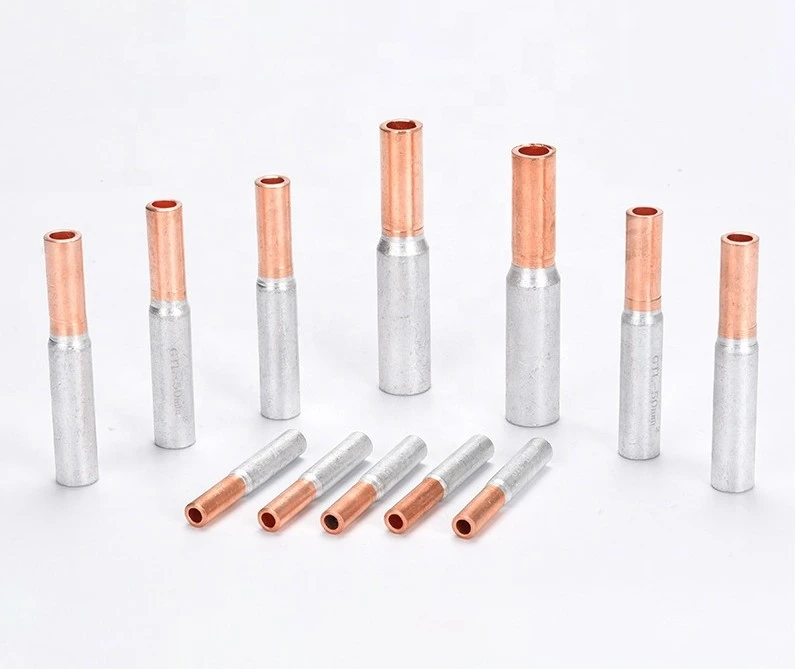

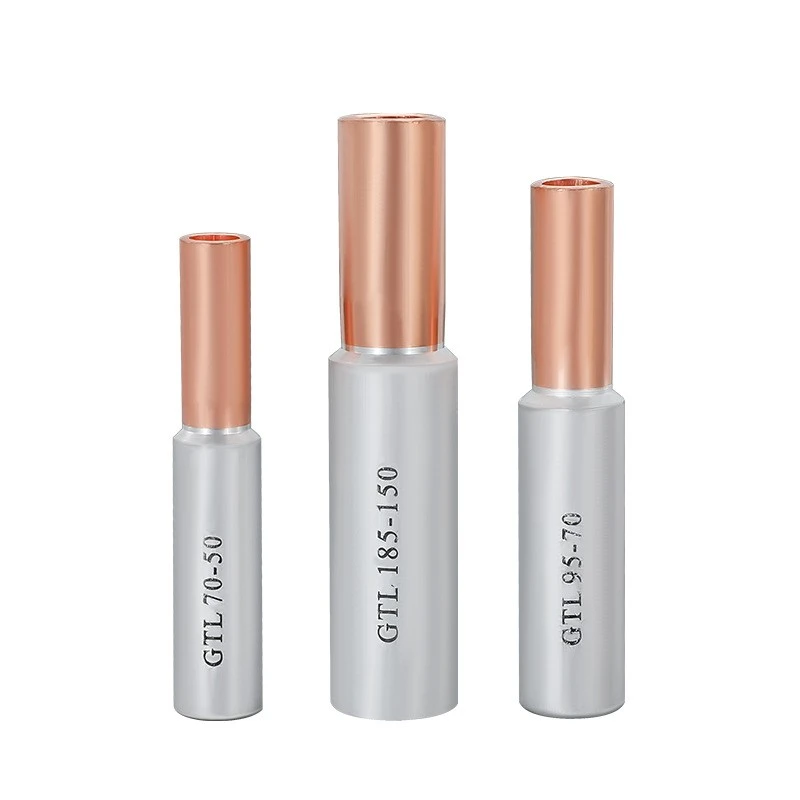

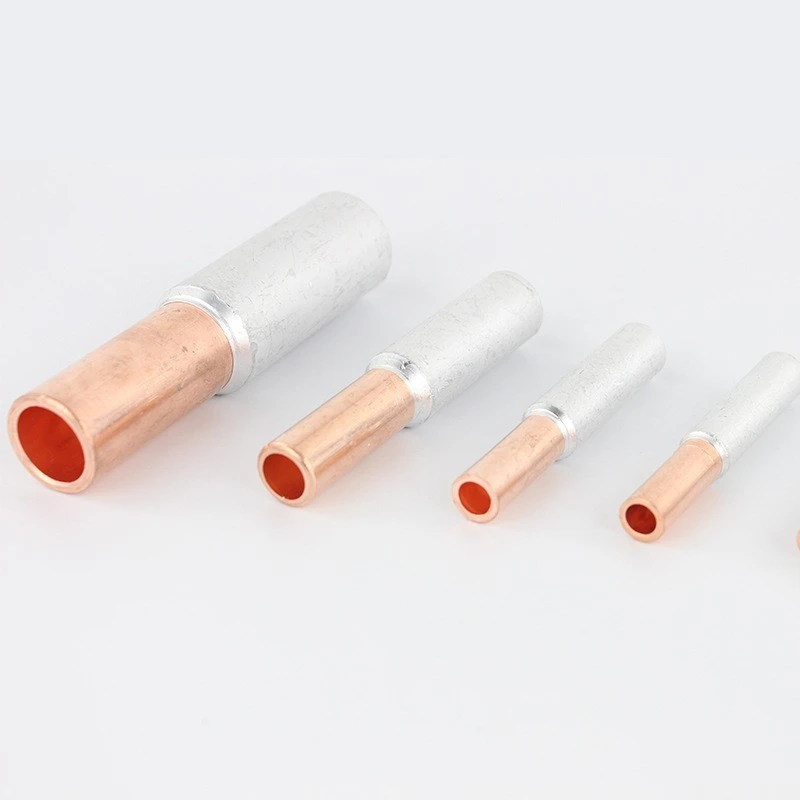

GTL Copper Aluminium Terminal Lugs
GTL copper aluminum terminal lugs are the accessory of high-performance transition connection, it’s specially designed for power distribution system.They achieve a stable and safe transition connection between aluminum cables and copper cables through professional design, effectively solves the wiring connection problem between different conductors in circuits.
Description
Wenzhou Lanen Electrical Co., Ltd. is one of the leading manufacturers and suppliers of gtl copper aluminium terminal lugs in China. We are committed to provide high quality customized products with low price. If you're going to buy advanced gtl copper aluminium terminal lugs made in China, welcome to get more discount information from our factory.
Description
GTL copper aluminum terminal lugs are the accessory of high-performance transition connection, it's specially designed for power distribution system.They achieve a stable and safe transition connection between aluminum cables and copper cables through professional design, effectively solves the wiring connection problem between different conductors in circuits. It's widely used in distribution cabinets, electrical control equipment, transmission engineering etc. meet the diverse connection demand in low-voltage electrical systems.
Our aluminum parts use over 99.5% high-purity Aluminum ,the copper components are made from 99.9% high-purity copper. Thanks to these high quality materials,it has low resistance, excellent conductivity and stable current transmission. It can also effectively reduce energy loss and prevent overheating during long-term use.
GTL copper aluminium terminal lugs are integrally formed, it use reliable friction welding technology. Copper and aluminum are tightly bonded together, strong welding performance and excellent stability. It effectively avoids some issues like cracking, loosening, or poor connections, and provides strong protection against corrosion,so it can handle the complex working environments easily.
In terms of specifications, it covers the range of aluminum cable from 16mm ² to 400mm ² and the range of copper cable from 10mm ² to 300mm ², the complete range of models is available for selection. Adopting a simple crimping installation method, easiness of constructio, high assembly efficiency, reliable connection. GTL copper aluminium terminal lugs have stable quality, strong durability and high cost-effectiveness, making them an ideal and reliable connector for copper aluminum transition wiring.

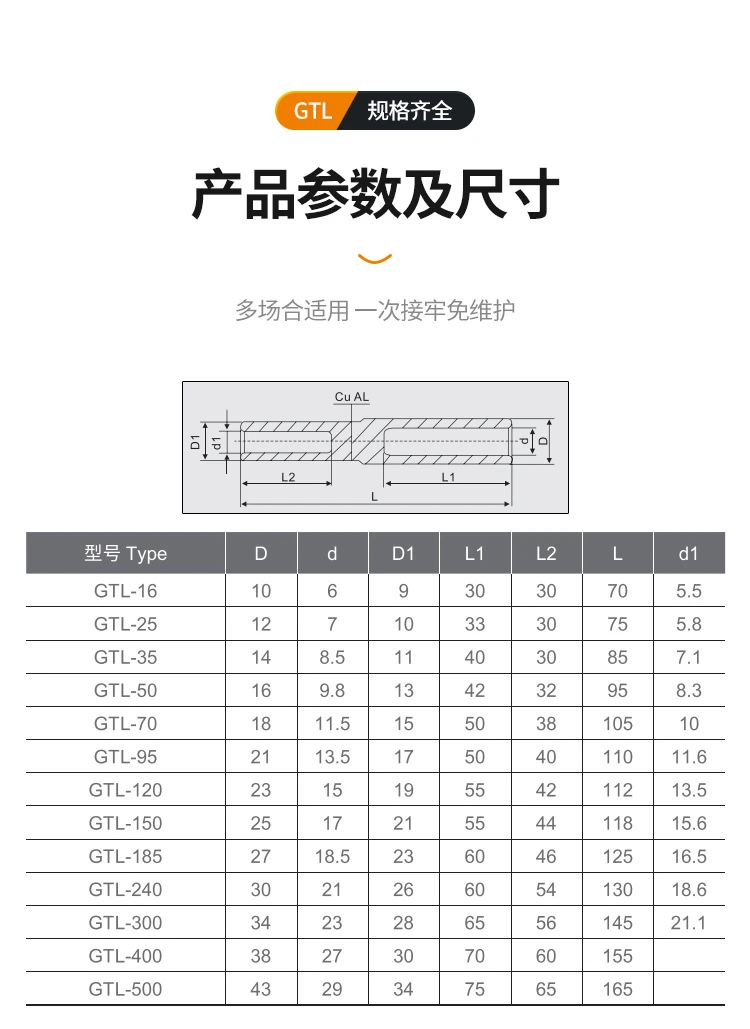

Parameter
Material: Al ≥ 99.5%, Cu ≥ 99.9%
Installation Method: Crimping
|
Type |
Dimensions(mm) |
||||||
|
D |
d |
D1 |
L1 |
L2 |
L |
d1 |
|
|
GTL-16 |
10 |
6 |
9 |
30 |
30 |
70 |
5.5 |
|
GTL-25 |
12 |
7 |
10 |
33 |
30 |
75 |
5.8 |
|
GTL-35 |
14 |
8.5 |
11 |
40 |
30 |
85 |
7.1 |
|
GTL-50 |
16 |
9.8 |
13 |
42 |
32 |
95 |
8.3 |
|
GTL-70 |
18 |
11.5 |
15 |
50 |
38 |
105 |
10 |
|
GTL-95 |
21 |
13.5 |
17 |
50 |
40 |
110 |
11.6 |
|
GTL-120 |
23 |
15 |
19 |
55 |
42 |
112 |
13.5 |
|
GTL-150 |
25 |
17 |
21 |
55 |
44 |
118 |
15.6 |
|
GTL-185 |
27 |
18.5 |
23 |
60 |
46 |
125 |
16.5 |
|
GTL-240 |
30 |
21 |
26 |
60 |
54 |
130 |
18.6 |
|
GTL-300 |
34 |
23 |
28 |
65 |
56 |
145 |
21.1 |
|
GTL-400 |
38 |
27 |
30 |
70 |
60 |
155 |
|
|
GTL-500 |
43 |
29 |
34 |
75 |
65 |
165 |
|
