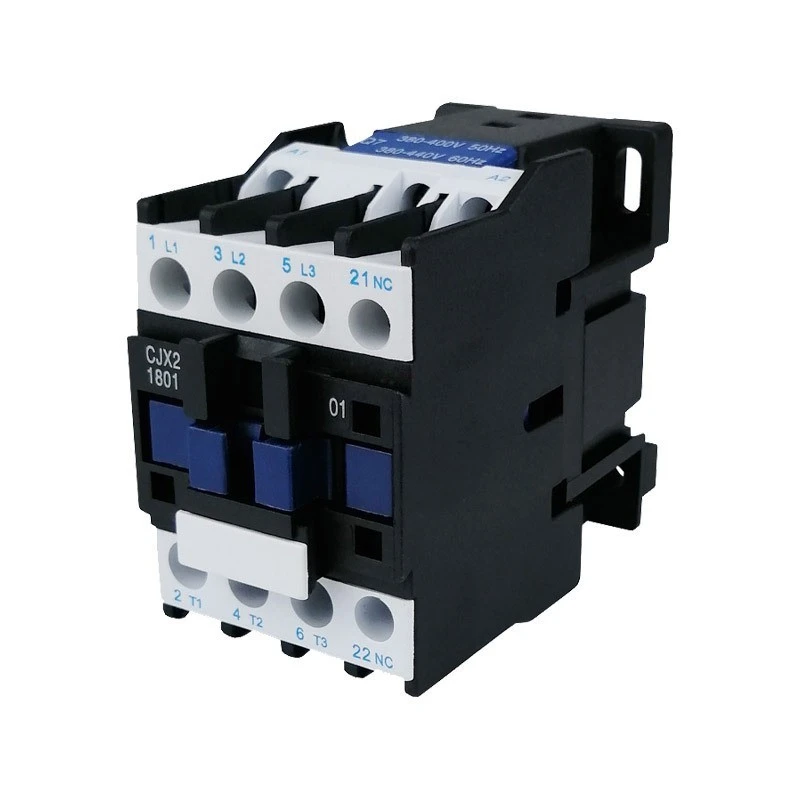

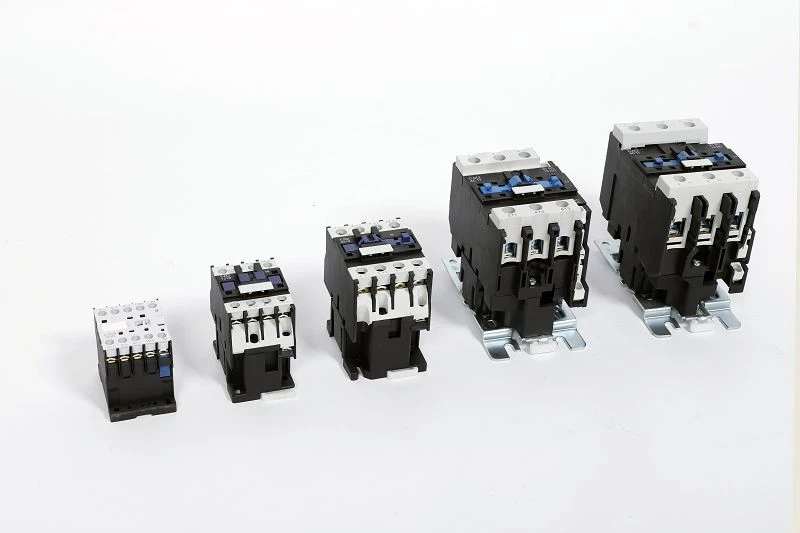

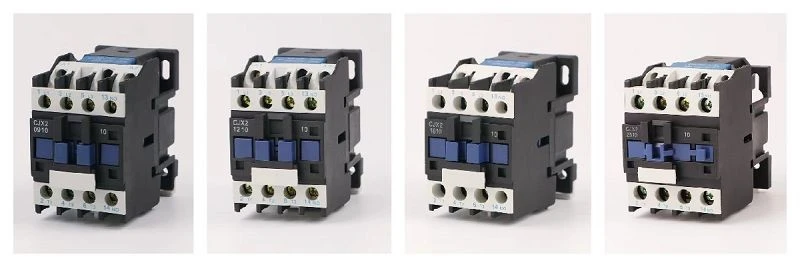

LC1D AC Contactor
LC1D
LC1D AC contactor is a high-performance electrical device, it runs reliably for long periods in modern power distribution and motor control systems. it is mainly used circuits of AC 50Hz (or 60Hz), voltage up to 690V, and current up to 95A This makes it really well-suited for industrial and commercial environments.
Description
Wenzhou Lanen Electrical Co., Ltd. is one of the leading manufacturers and suppliers of lc1d ac contactor in China. We are committed to provide high quality customized products with low price. If you're going to buy advanced lc1d ac contactor made in China, welcome to get more discount information from our factory.
Description
LC1D AC contactor is a high-performance electrical device, it runs reliably for long periods in modern power distribution and motor control systems. it is mainly used circuits of AC 50Hz (or 60Hz), voltage up to 690V, and current up to 95A This makes it really well-suited for industrial and commercial environments.
LC1D ac contactor is for long-distance switching on/off the circuits and frequent start-up and control of AC motor, Its strong mechanical structure ensures the stable contact action, low energy comsumption, and low noise, which greatly improves the efficiency and reliability of your electrical system.

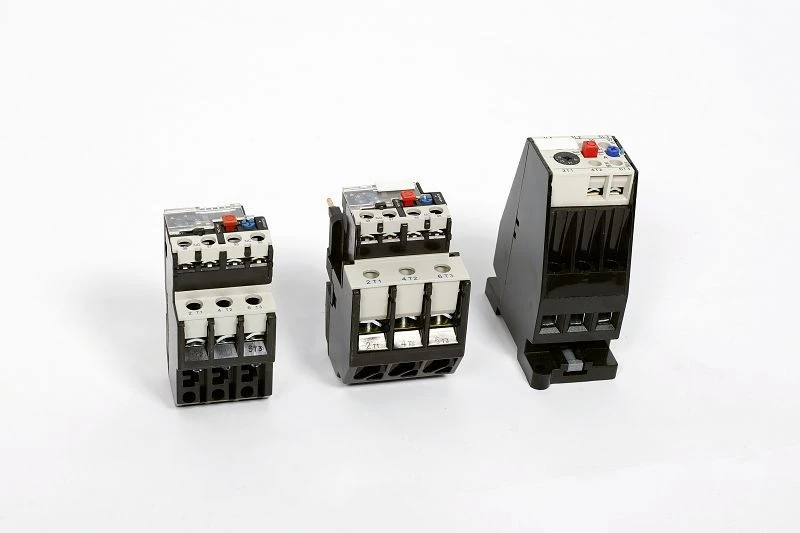

LC1D AC contactor has highly compatible. It can be paired with thermal relays, auxiliary contacts, delay modules and mechanical interlocking, and create the complete motor control and protection setups. These setups support direct starting, forward and reverse control, star-delta starting, and time-delay control systems.
LC1D ac contactor is widely used in pumps, fans, compressors, machine tools, automation equipment, and distribution cabinets.It meets the needs of many different electricity control. Built to meet the international standard IEC 60947-4-1, it offers great insulation, reliable protection,long mechanical and electrical life. Easy to install, compact and extremely flexible, it has become the top choice for safe and efficient motor and circuit control.
Operation Data
|
Rated insulation voltage (Ui) |
690V |
|
Rated operation current (In) |
380VAC AC-3 9,12,18, 25, 32, 40, 50, 65, 80, 95A, AC-4 3.5, 5, 7.7, 8.5,12,18.5, 24, 28, 37, 44A |
|
Rated heating current(A) |
20,25,32,40,50,60,80,110 |
|
Control power voltage(Us) |
36,110,127,220,380VAC |
|
Type |
LC1-D09 |
LC1-D12 |
LC1-D18 |
LC1-D25 |
LC1-D32 |
LC1-D40 |
LC1-D50 |
LC1-D65 |
LC1-D80 |
LC1-D95 |
|
|
Rated working current (A) |
AC3 |
9 |
12 |
18 |
25 |
32 |
40 |
50 |
65 |
80 |
95 |
|
AC4 |
3.5 |
5 |
7.7 |
8.5 |
12 |
18.5 |
24 |
28 |
37 |
44 |
|
|
Standard power ratings of 3-phase motors 50/60Hz in category AC-3 |
220/230V |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
25 |
|
380/400V |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
|
|
415V |
4 |
5.5 |
9 |
11 |
15 |
22 |
25 |
37 |
45 |
45 |
|
|
500V |
5.5 |
7.5 |
10 |
15 |
18.5 |
22 |
30 |
37 |
55 |
55 |
|
|
660/690V |
5.5 |
7.5 |
10 |
15 |
18.5 |
30 |
33 |
37 |
45 |
55 |
|
|
Rated heat current (A) |
20 |
20 |
32 |
40 |
50 |
60 |
80 |
80 |
125 |
125 |
|
|
Electrical life |
AC3 (x104) |
100 |
100 |
100 |
100 |
80 |
80 |
60 |
60 |
60 |
60 |
|
AC4 (x104) |
20 |
20 |
20 |
20 |
20 |
15 |
15 |
15 |
10 |
10 |
|
|
Mechanical life (x104) |
1000 |
1000 |
1000 |
1000 |
800 |
800 |
800 |
800 |
600 |
600 |
|
|
Number of the contacts |
3P+NO |
3P+NC+NO |
|||||||||
|
3P+NC |
|||||||||||
