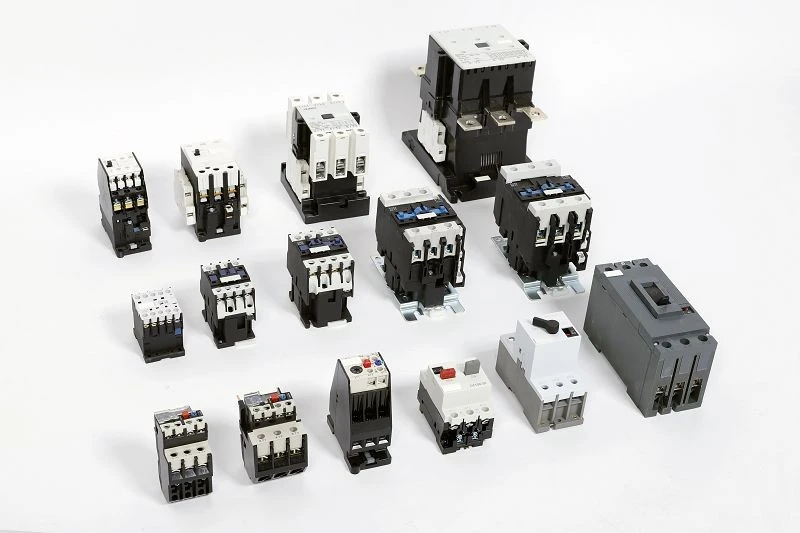

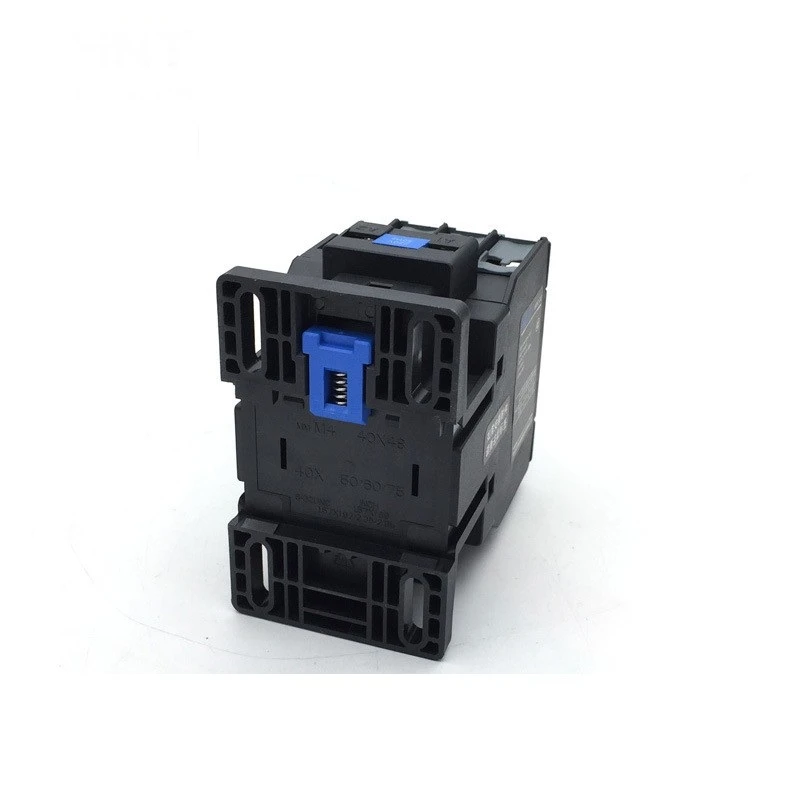

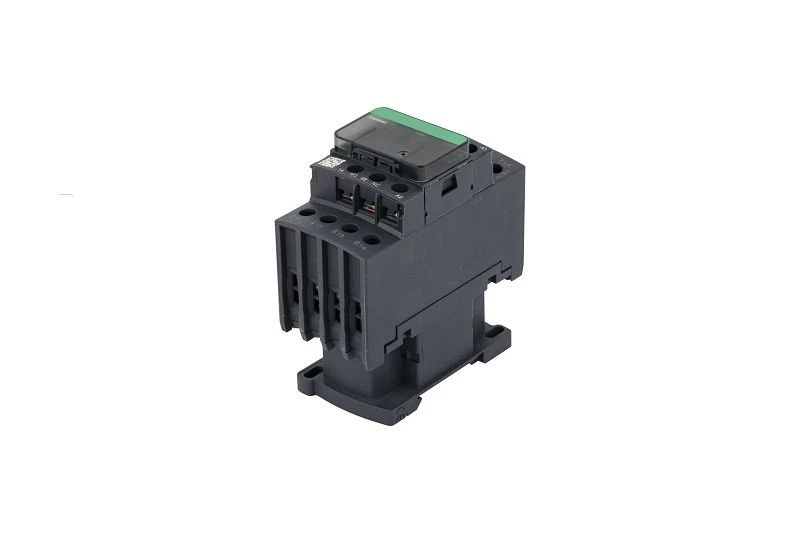

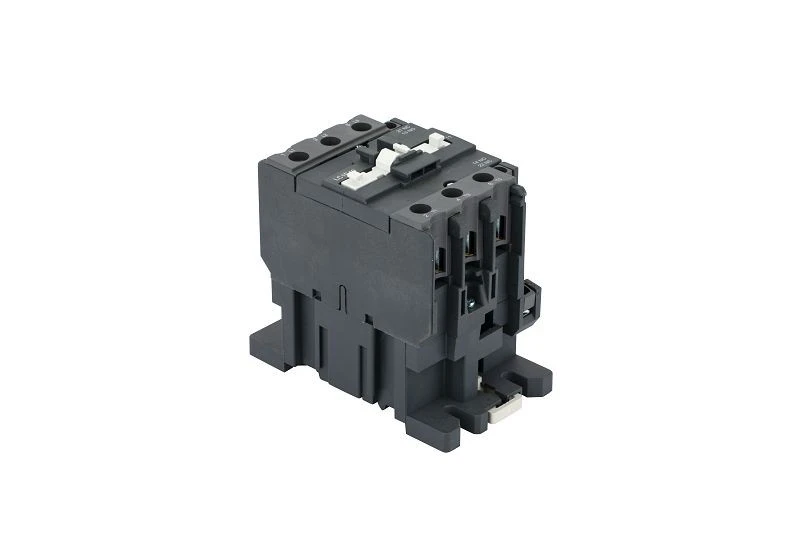

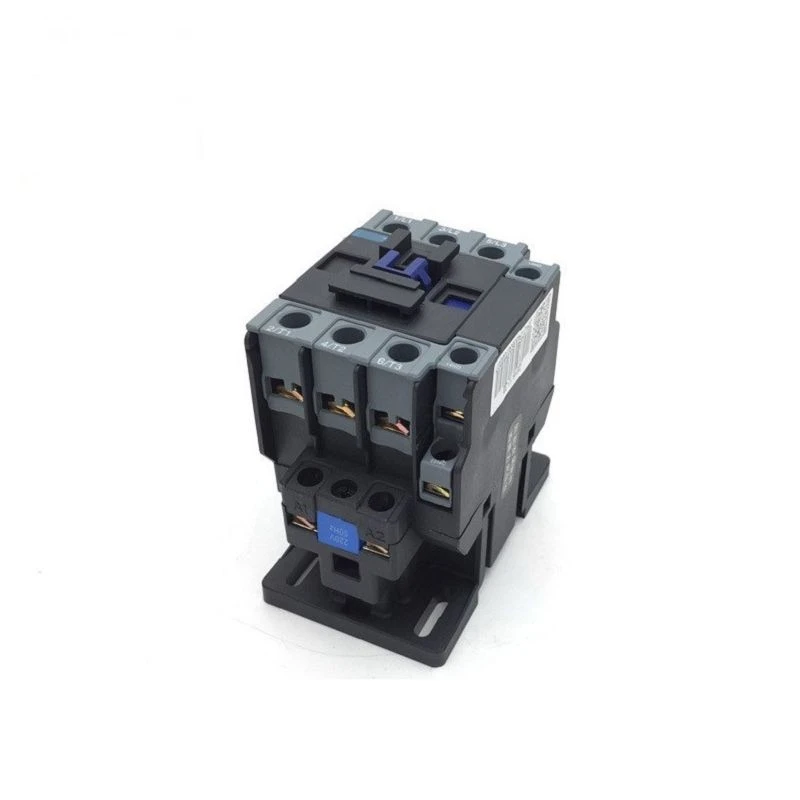

CJX2 Ac Contactor
CJX2 AC contactor feature a novel appearance and a compact structure. It’s built with advanced design ideas and reliable manufacturing techniques.
They are mainly used for frequent starts and control of AC motors as well as remote circuit making /breaking.
Description
Wenzhou Lanen Electrical Co., Ltd. is one of the leading manufacturers and suppliers of cjx2 ac contactor in China. We are committed to provide high quality customized products with low price. If you're going to buy advanced cjx2 ac contactor made in China, welcome to get more discount information from our factory.
Application
CJX2 AC contactor feature a novel appearance and a compact structure. It's built with advanced design ideas and reliable manufacturing techniques.
They are mainly used for frequent starts and control of AC motors as well as remote circuit making /breaking.
To improve the safety and equipment reliability, CJX2 AC contactor can also be combined with appropriate thermal overload relay to form electromagnetic starter. This setup provides the solid protection against overload, overheating, and phase loss that can happen when motors are running. It effectively prevents equipment damage and production stops caused by high current or abnormal working conditions.
Feature
- Rated operation current Ie: 6A~630A
- Rated operation voltage Ue: 220V~690V
- Rated insulation voltage: 690V(CJX2-06M~100),1000V(CJX2-120~630)
- Number of poles: 3P and 4P(only for CJX2-06M~16M)
- Coil control method: AC(CJX2-06(M)~225),DC(CJX2-06M~16M),AC/DC(CJX2-265~630)
- Installation method: CJX2-06M~100 rail and screw installation. CJX2-120~630 screw installation
Operation And Installation Conditions
|
Type |
Operation and installation conditions |
|
Installation class |
III |
|
Pollution degree |
3 |
|
Compliant standard |
IEC/EN 60947-1,IEC/EN 60947-4-1,IEC 60947-5-1 |
|
Certification mark |
CE |
|
Enclosure protection degree |
CJX2-06M~12M,IP20;CJX2-40~100,IP20;CJX2-120~630,IP00 |
|
Ambient temperature |
Operation temperature limits:-35℃~+70℃. Normal operation temperature range:-5℃~+40℃ The 24-hour average temperature should not exceed +35℃. For use beyond the normal operation temperature range, see"Instructions for use in abnormal conditions"in the annex. |
|
Altitude |
Not exceeding 2000m above sea level |
|
Atmospheric conditions |
The relative humidity should not exceed 50% at the upper temperature limit of +70℃. A higher relative humidity is allowed at a lower temperature,e.g.90% at +20℃. Special precautions should be taken against occasional condensation due to humidity variations |
|
Installation conditions |
The angle between the installation surface and the vertical surface should not exceed ± 5℃. |
|
Shock and vibration |
The product should be installed in places without significant shaking,shock and vibration. |
