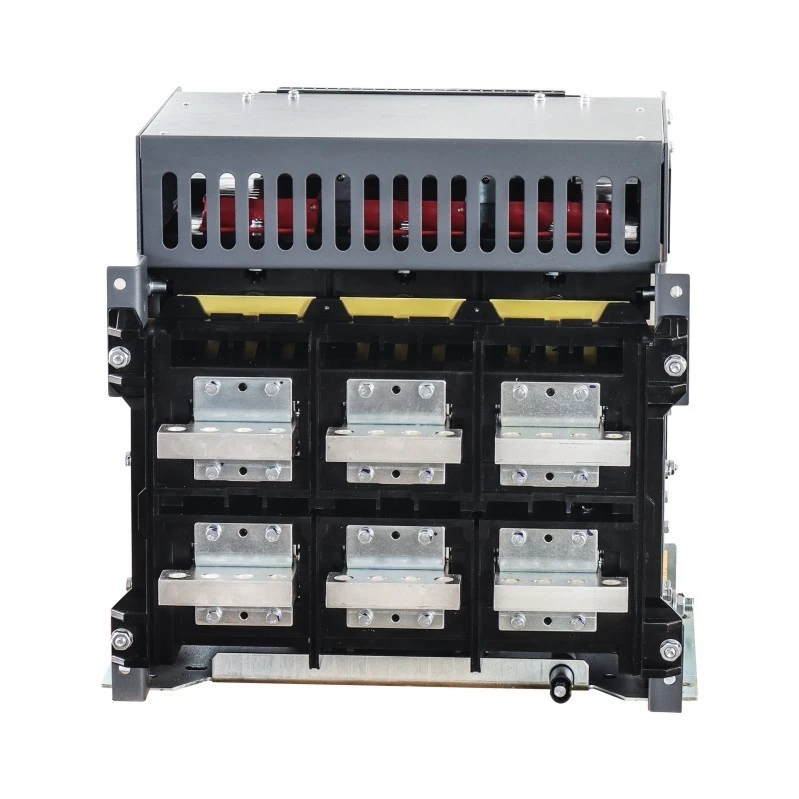

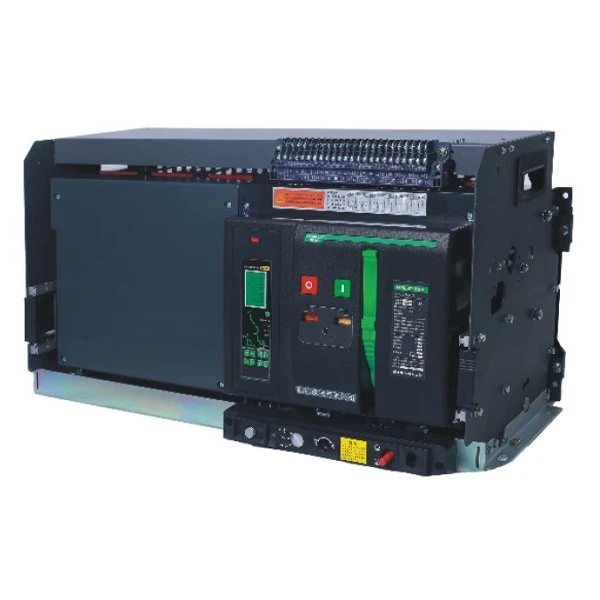

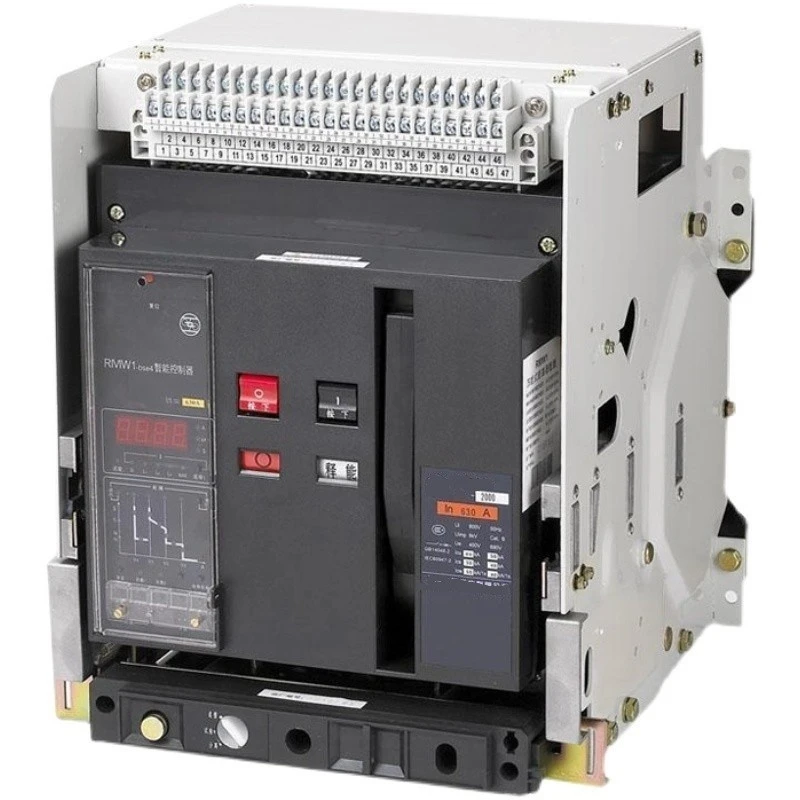

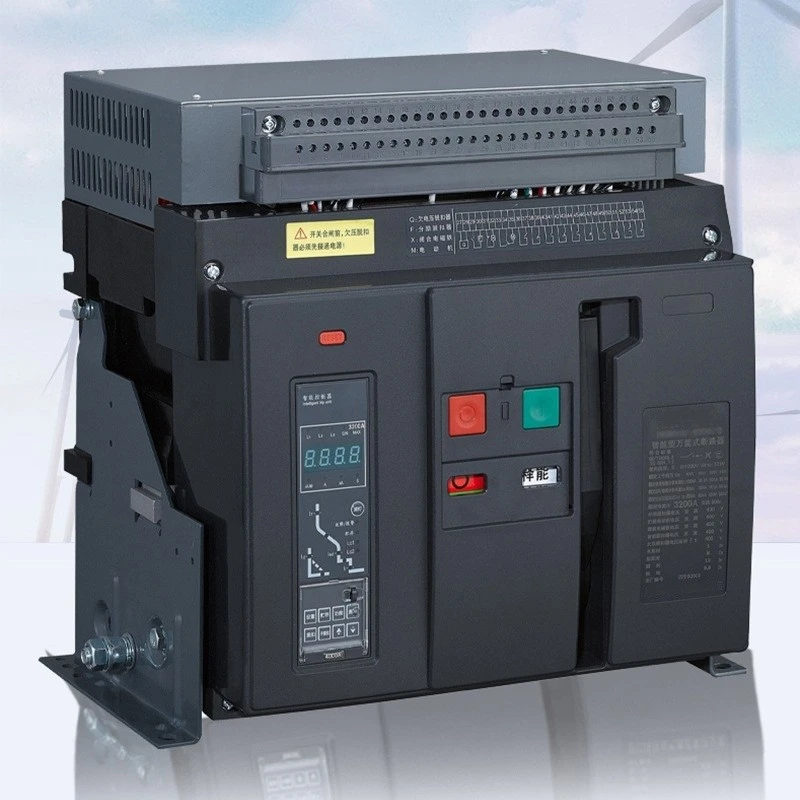

Drawer Type Air Circuit Breakers

Name: China Cheap Drawer Type Air Circuit Breakers Manufacturers Suppliers Factory - Made in China - Lanen
Brand: Lanen
SKU: 305018328

Drawer type air circuit breakers are an advanced and smart solution, designed from main intake switchboards with frame,suitable for both 50Hz and 60Hz AC power distribution systems. They are suitable for regular operating voltages of 400V and 690V, with a maximum rated current capacity reaching up to 10000A.

Send Inquiry

Description

Wenzhou Lanen Electrical Co., Ltd. is one of the leading manufacturers and suppliers of drawer type air circuit breakers in China. We are committed to provide high quality customized products with low price. If you're going to buy advanced drawer type air circuit breakers made in China, welcome to get more discount information from our factory.

Applications

Drawer type Air Circuit Breakers are like a guard for electrical circuits. Under normal conditions, current flows through the closed contacts. When surge happens, like a short circuit, trips, and the contacts separate, creating an arc. Drawer type Air Circuit Breaker makes use of a strong air blast to extinguish the arc. It stops the current flow, protecting the circuit. It's like blowing out a candle flame to prevent a fire.

The key applications of air circuit breakers (ACBs) are as follows:

Low-Voltage Distribution: Protecting and controlling circuits in buildings, factories, and commercial spaces.
Motor Starting and Protection: Ensuring safe startup and operation of electric motors.
Power Plant Auxiliaries: Controlling and safeguarding equipment within power generation facilities.
High-Risk Environments: ACBs are preferred in areas with fire hazards due to their fast arc quenching capability.
Frequent Operation: Their robust design makes them suitable for applications requiring frequent switching.
Mounting mode：Fixed and Draw-out Type

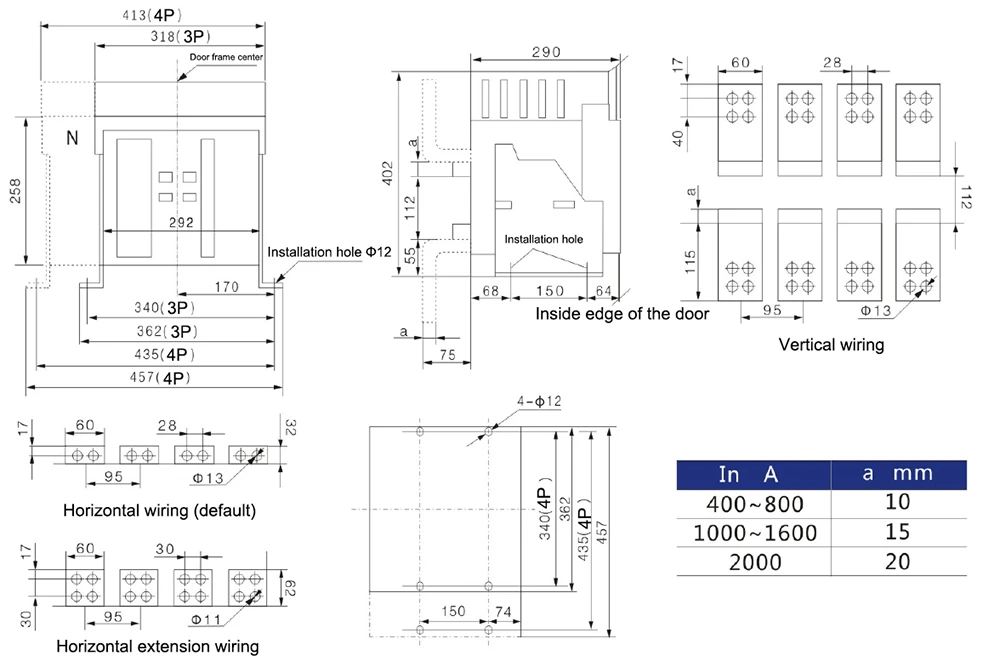

Operation Data

Type			NW1-2000	NW1-3200	NW1-4000	NW1-6300
Pole			3P/4P	3P/4P	3P/4P	3P/4P
Using category			B	B	B	B
Rated current In		A	400,630,800,1000,1250,1600,2000	2000,2500,2900,3200	3200,3600,4000	4000,5000,6300
Rated frequency		Hz	50	50	50	50
Rated operation voltage Ue		V	400/690	400/690	400/690	400/690
Rated insulation voltage Ui		V	800	800	800	800
Arcing distance		mm	0	0	0	0
Rated impulse withstand voltage Uimp		V	8000	8000	8000	8000
Rated limiting short circuit breaking capacity Icu	400V	kA	80	100	100	120
Rated limiting short circuit breaking capacity Icu	690V	kA	50	65	65	85
Rated operation short circuit breaking capacity Ics	400V	kA	65	80	80	100
Rated operation short circuit breaking capacity Ics	690V	kA	50	50	65	75
Rated short time withstanding current Icw	400V	kA	50	65	65/80(MCR)	85/100(MCR)
Rated short time withstanding current Icw	690V	kA	40	50	50/65(MRC)	65/75(MCR)
Operation life	Electrical	times	1000	500	500	500
Operation life	Mechanical	times	10000	5000	5000	5000
