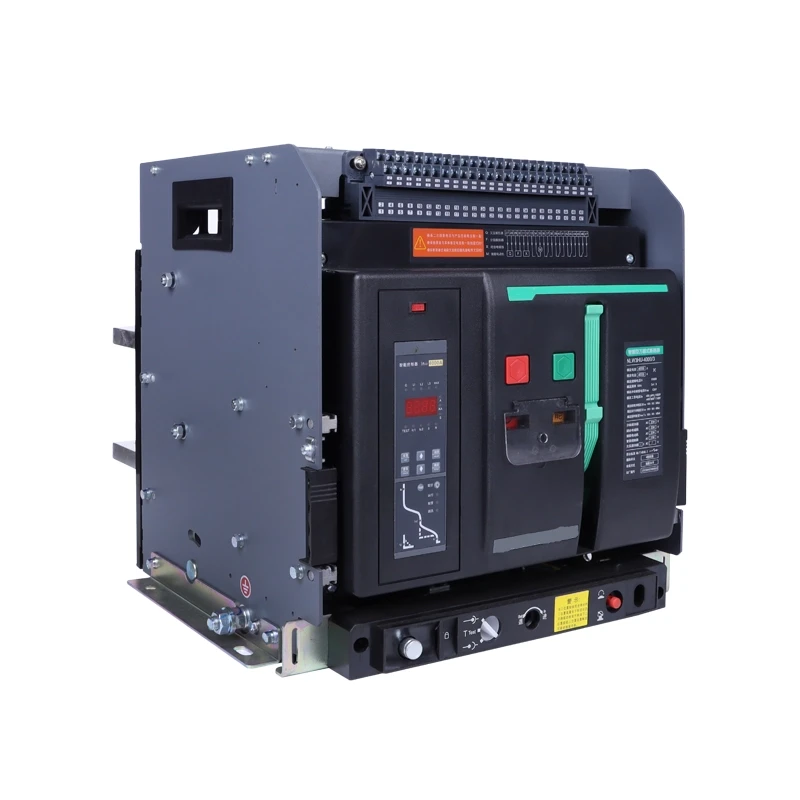

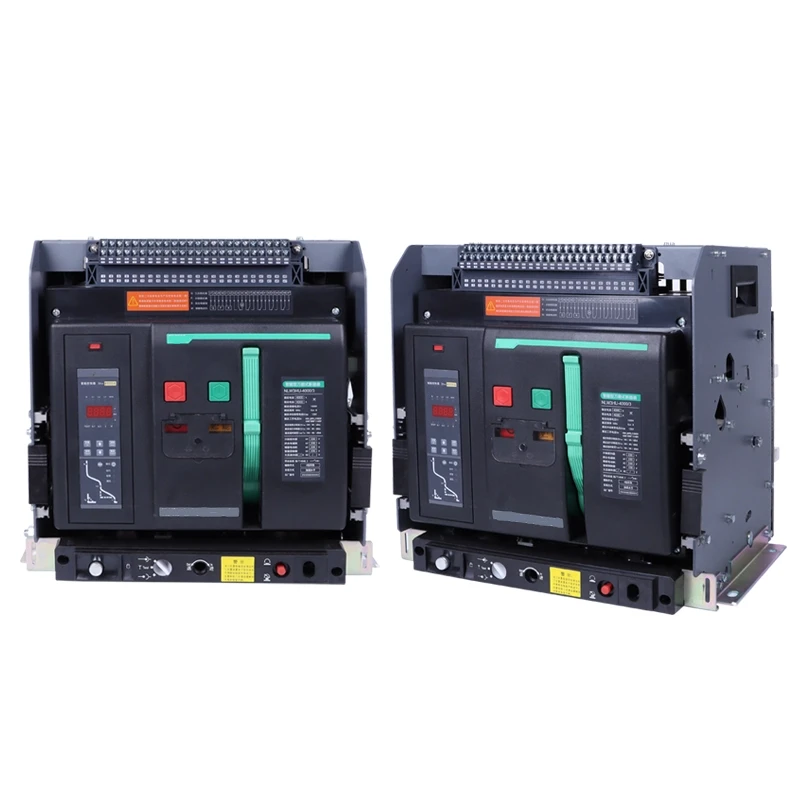

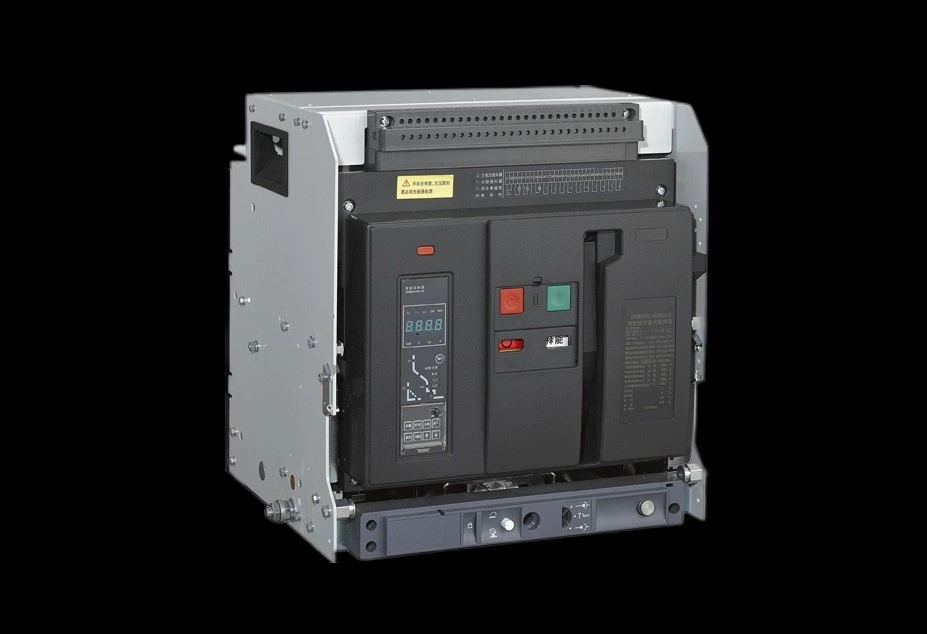

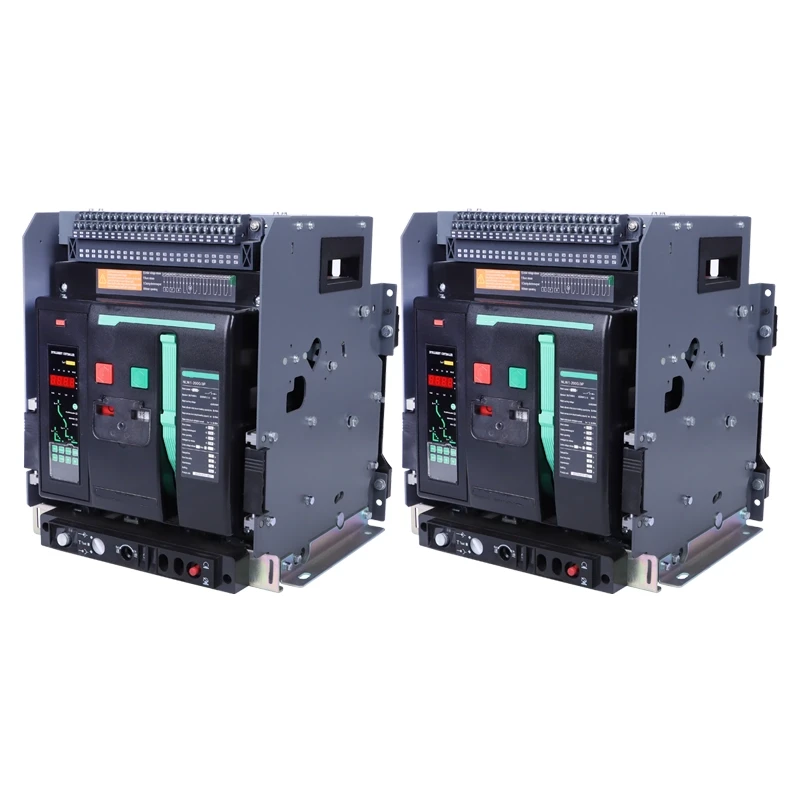

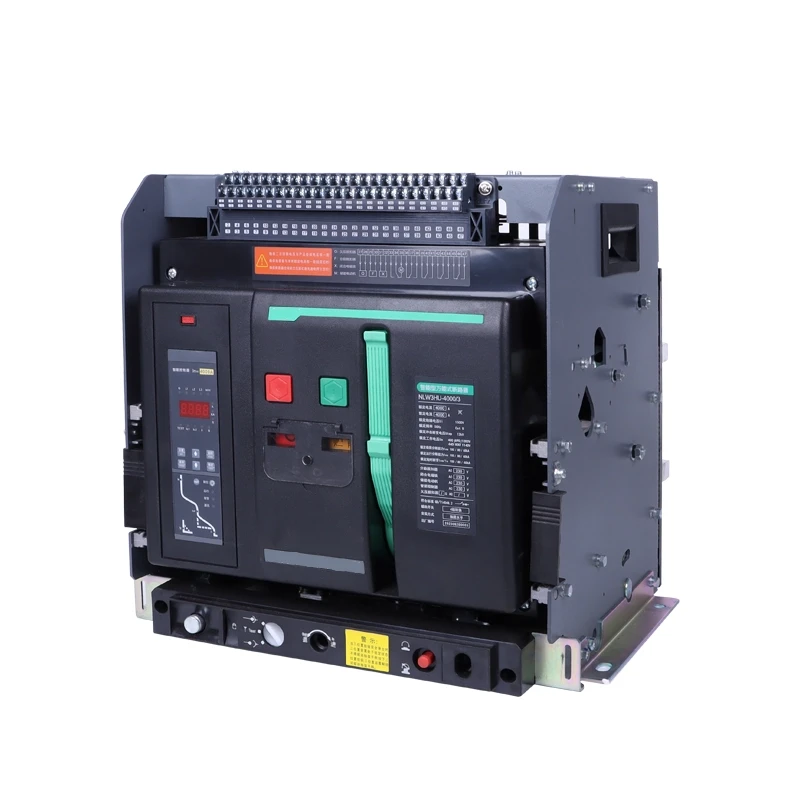

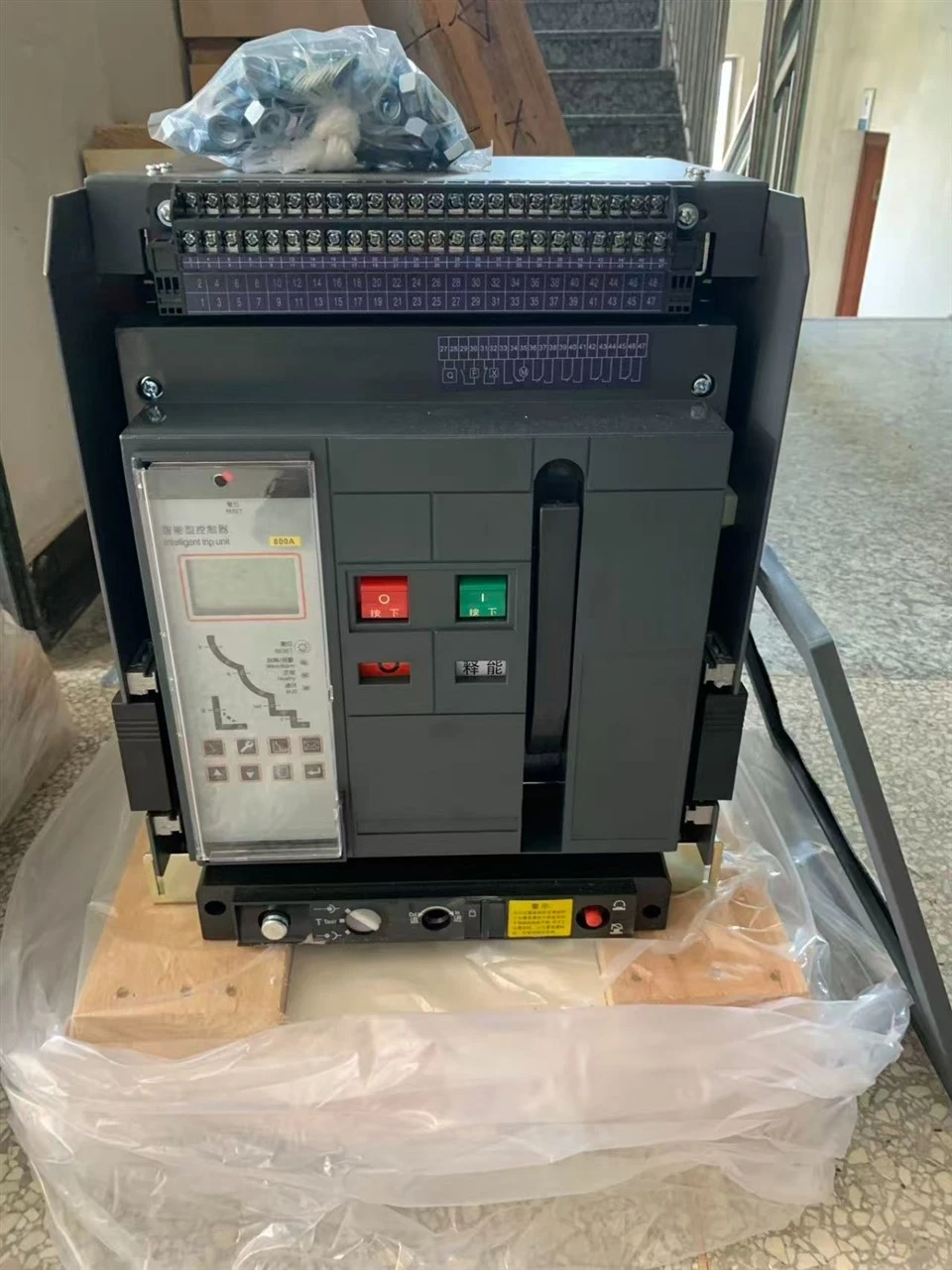

Intelligent Air Circuit Breaker
NW1
Intelligent air circuit breaker is suitable for the circuit of AC 50Hz/60Hz with rated service voltage 400V, 690V and rated service current up to 6300A. It is mainly used to distribute electric energy and protect circuits and electric equipment against over-load, under-voltage, short-circuit and single-phase earthing fault.
Description
Wenzhou Lanen Electrical Co., Ltd. is one of the leading manufacturers and suppliers of intelligent air circuit breaker in China. We are committed to provide high quality customized products with low price. If you're going to buy advanced intelligent air circuit breaker made in China, welcome to get more discount information from our factory.
Application scope
Intelligent air circuit breaker is suitable for the circuit of AC 50Hz/60Hz with rated service voltage 400V, 690V and rated service current up to 6300A. It is mainly used to distribute electric energy and protect circuits and electric equipment against over-load, under-voltage, short-circuit and single-phase earthing fault.
With intelligentized and selective protection functions,intelligent Air Circuit Breaker can improve the reliability of power supply, and avoid unnecessary power failure. The breaker is applicable for power stations,
factories, mines (for 690V) and modern high buildings, especially for the distribution system of intelligentized building.
Intelligent air circuit breakers also come with built-in smart control and real-time monitoring features. They deliver accurate protection, allow easy parameter adjustment and boast strong breaking performance. They work perfectly to maintain reliable power distribution in factories, commercial complexes, data centers, power substations and various infrastructure facilities.
Explore our full range of high-performance intelligent air circuit breakers to enhance system reliability, optimize operational safety, and ensure efficient and safe power management in your critical applications

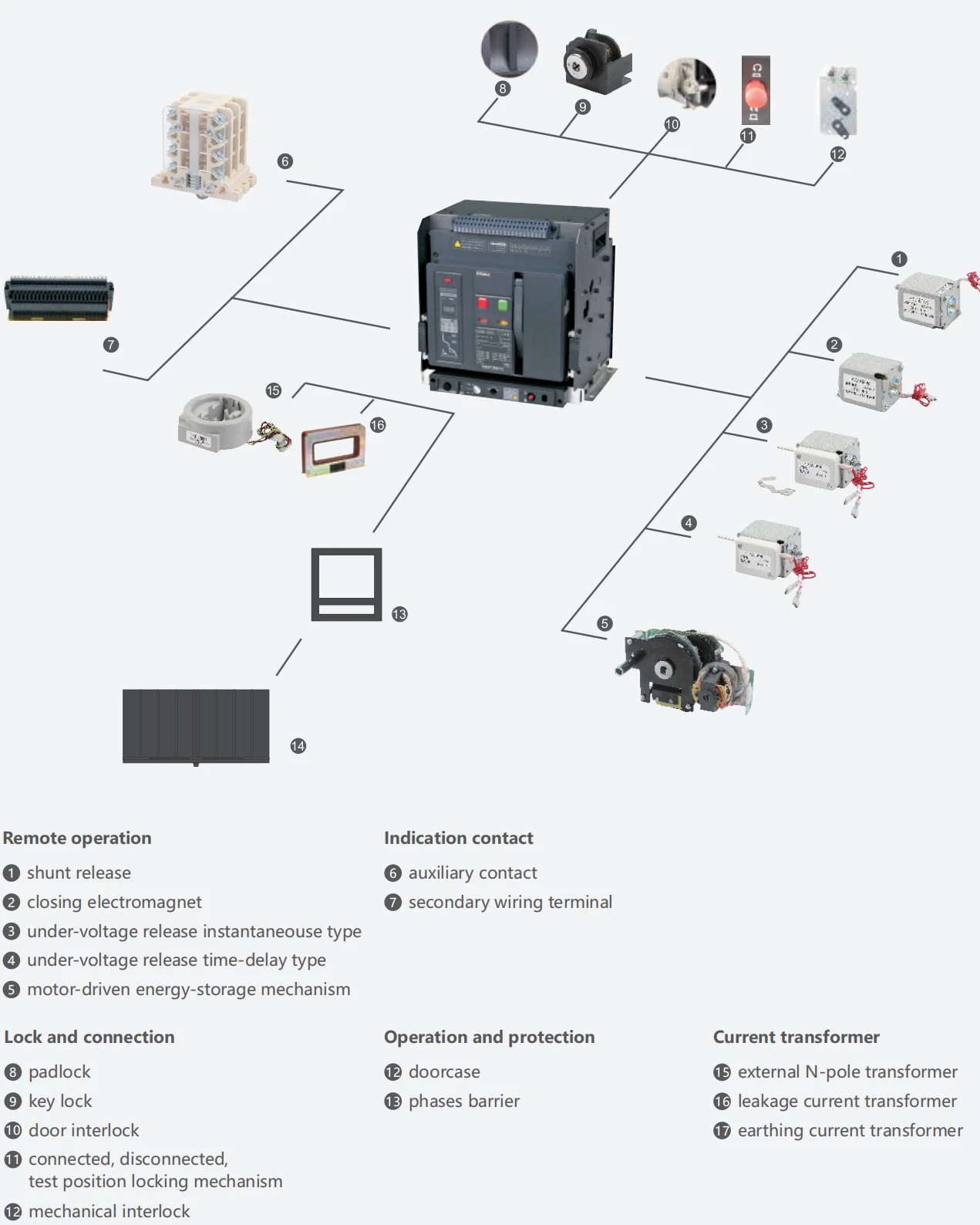

Mounted in a compartment of cubicle with additional door frame.
Mounted in a compartment of cubicle with additional door frame and transparent cover.
Operation condition
- Temperature condition: -5 ℃ ~40 ℃ ; the average value within 24h shall not exceed +35℃ (special situation excluded);
- Altitude:≤2000m;
- Pollution grade: Grade 3;
- Air conditions: At mounting site, relative humidity not exceed 50% at the max
- temperature of +40 ℃ , higher relative humidity is allowable
- under lower temperature, RH could be 90% at +20 ℃ , special
- measures should be taken to occurrence of dews;
- Note: Without the intelligent controller, the breaker functions as a switch-disconnector.
Technical Parameter
|
Type |
NW1-2000 |
NW1-3200 |
NW1-4000 |
NW1-6300 |
|
|
Frame rated current Inm(A) |
2000 |
3200 |
4000 |
6300 |
|
|
Number of pole |
3,4 |
3,4 |
3,4 |
3,4 |
|
|
Rated current In(A) |
630,800,1000,1250, 1600,2000 |
2000,2500,3200 |
2000,2500,3200,4000 |
4000,5000,6300 |
|
|
Icu(KA) |
400V |
80 |
100 |
100 |
120 |
|
690V |
50 |
65 |
65 |
80 |
|
|
Ics=Icw(kA) |
400V |
50 |
80 |
80 |
100 |
|
690V |
40 |
50 |
50 |
65 |
|
|
Rated current at N-pole In(A) |
50%In, 100%In |
||||
|
Inherent making &breaking time |
23~32ms |
||||
|
Operational performance (operations) |
Electric life |
500 |
|||
|
Mechanical life |
Maintenance-free 2500 Maintenance 10000 |
||||
|
Mounting mode |
Fixed/With drawable |
||||
|
Arcing distance(mm) |
0 |
||||
|
Intelligent controller |
Standard type (M) telecommunication type(H) |
||||
