Frame Circuit Breaker

Name: China Frame Circuit Breaker Manufacturers Suppliers Factory - Cheap Frame Circuit Breaker - Lanen
Brand: Lanen
SKU: 305019144

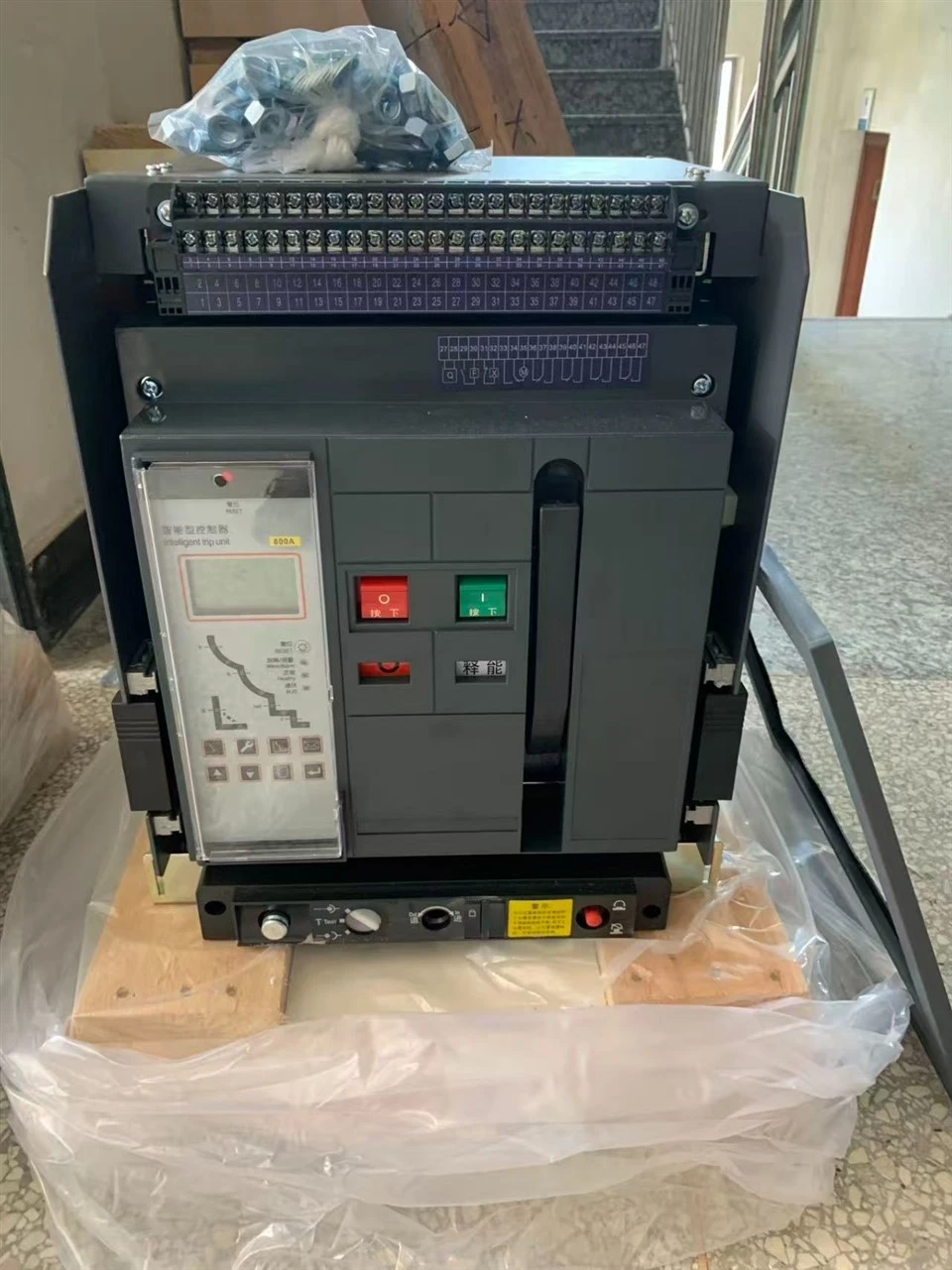

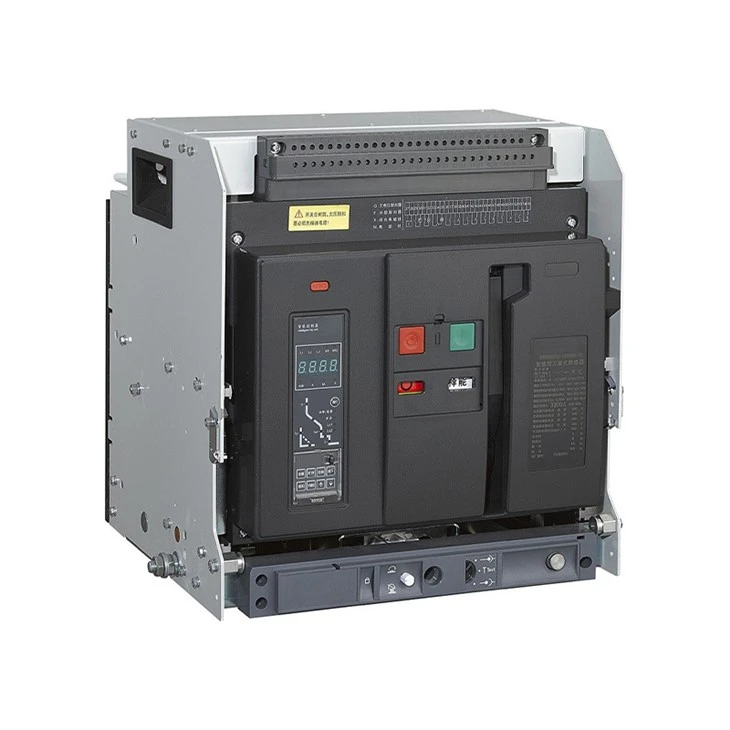

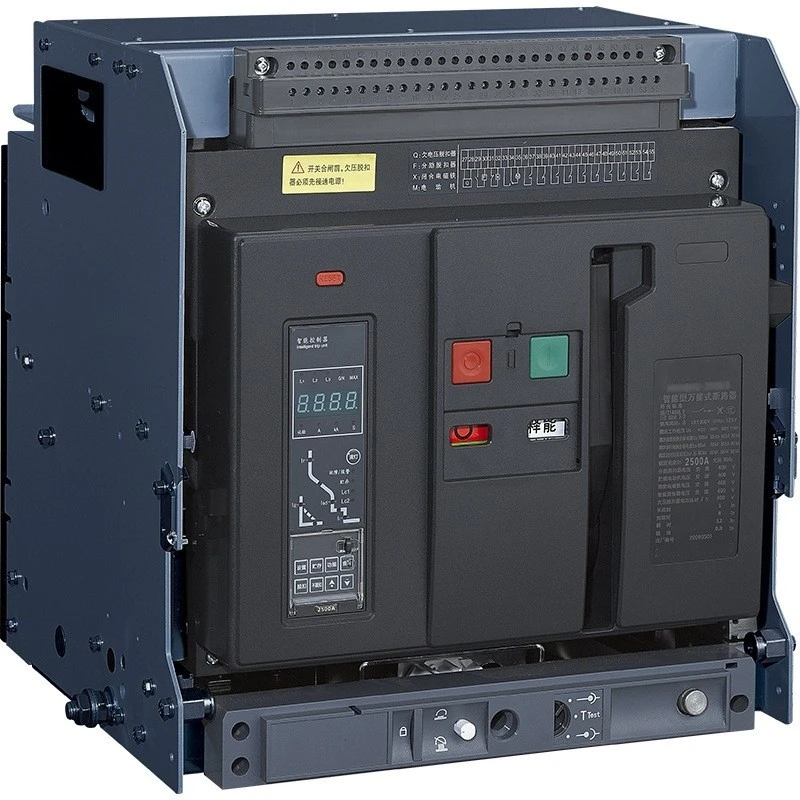

Frame circuit breaker is used for protect electrical systems from damage caused by overloads, short circuits and equipment ground faults. Embedding Micro Logic control units, it contributes to safety and energy efficiency. The range covers ratings from 800 to 6300 A in two different sizes.

Send Inquiry

Description

Wenzhou Lanen Electrical Co., Ltd. is one of the leading manufacturers and suppliers of frame circuit breaker in China. We are committed to provide high quality customized products with low price. If you're going to buy advanced frame circuit breaker made in China, welcome to get more discount information from our factory.

Description

In the event of a short circuit or fault, breakers quickly isolate the issue, unloading the excess current from the system. This helps prevent lasting damage to equipment and ensures power is restored safely and efficiently. Beyond protection, frame circuit breaker play a vital role in routine switching operations to maintain system stability and control. Their precise design and fast response are critical to ensuring uninterrupted, reliable electricity supply across today's complex power networks.

◇Featured with complete intelligence,high breaking capacity and zero arc;

◇AC rated current200A-6300A,short-circuit breaking capacity 85kA~120kA;

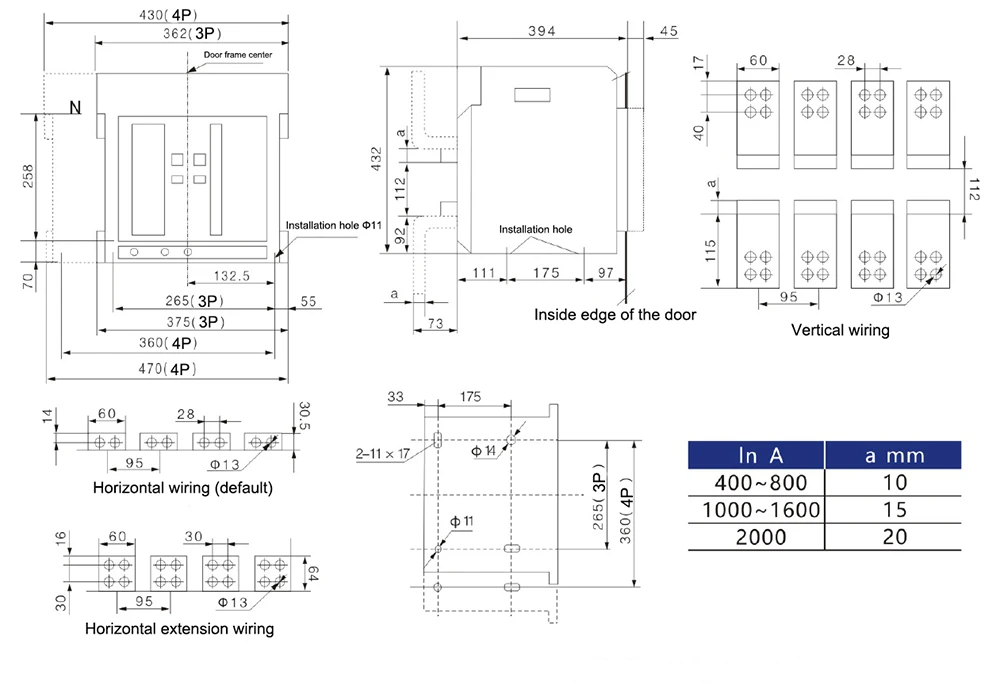

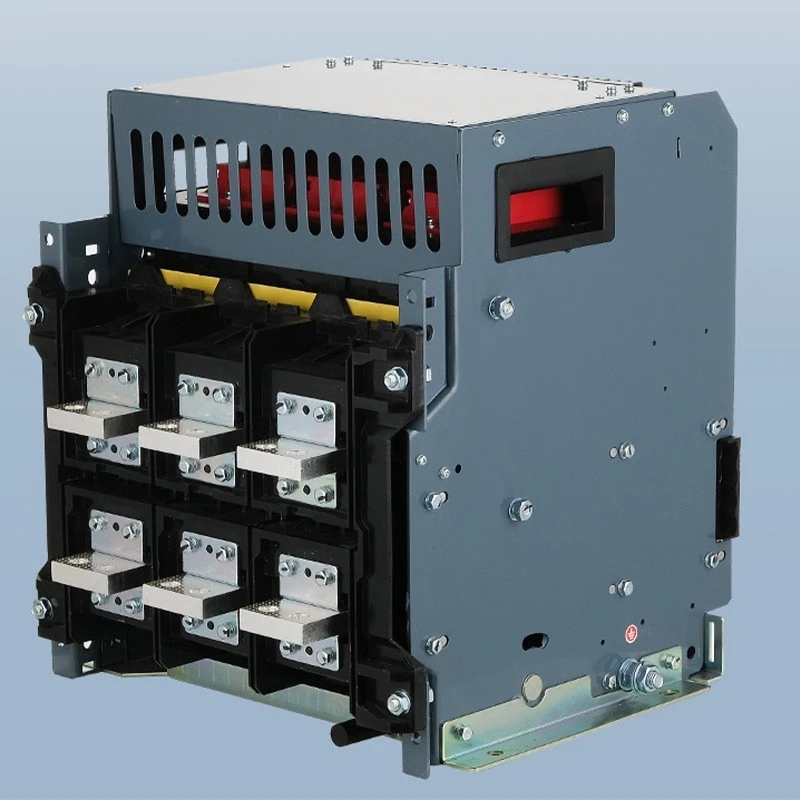

◇3 and 4 poles,draw-out type and fixed type,and can be installed with inverted wires;

◇With multiple intelligent controllers,providing different functions;intelligent function,display function

Technical data and performance

◎1.The rated current of the circuit breaker is shown in Table1

Rated frame current Inm A	Rated current In A
2000	400,630,800,1000,1250,1600,2000
3200	2000,2500,2900,3200
4000	3200,3600,4000
6300	4000,5000,6300

◎2.The rated short-circuit breaking capacity and short-term withstand current of the circuit breaker are shown in Table2,and the arc distance of the circuit breakers "zero"(i.e.there is no arc outside the circuit breaker) Table2

Rated frame current InmA		2000	3200	4000	6300
Rated ultimate short-circuit breaking capacity Icu (KA)0-CO	400V	80	100	100	120
	690V	50	65	65	85
Rated short-time making capacity n×lcu(KA)/-cos	400V	176/0.2	220/0.2	220/0.2	264/0.2
Rated short-time making capacity n×lcu(KA)/-cos	690V	105/0.25	143/0.2	143/0.2	187/0.2
Rated service short-circuit breaking capacity Ics(KA)O-CO-CO	400V	65	80	80	100
	690V	50	50	65	75
Rated short-time withstand current Icw (KA)1s,delay 0.4s,O-CO	400V	50	65	65/80(MCR)	85/100(MCR)
	690V	40	50	50/65(MCR)	65/75(MCR)
