Low Voltage Pole Mounted Circuit Breakers
D265T with digital trip unit
The protection and management of MV/LV transformers in rural areas requires the use of specific circuit breakers adapted to significant load imbalances, thus ensuring the full utilization of installed power even under imbalance conditions.
Description
Wenzhou Lanen Electrical Co., Ltd. is one of the leading manufacturers and suppliers of low voltage pole mounted circuit breakers in China. We are committed to provide high quality customized products with low price. If you're going to buy advanced low voltage pole mounted circuit breakers made in China, welcome to get more discount information from our factory.
Product Details

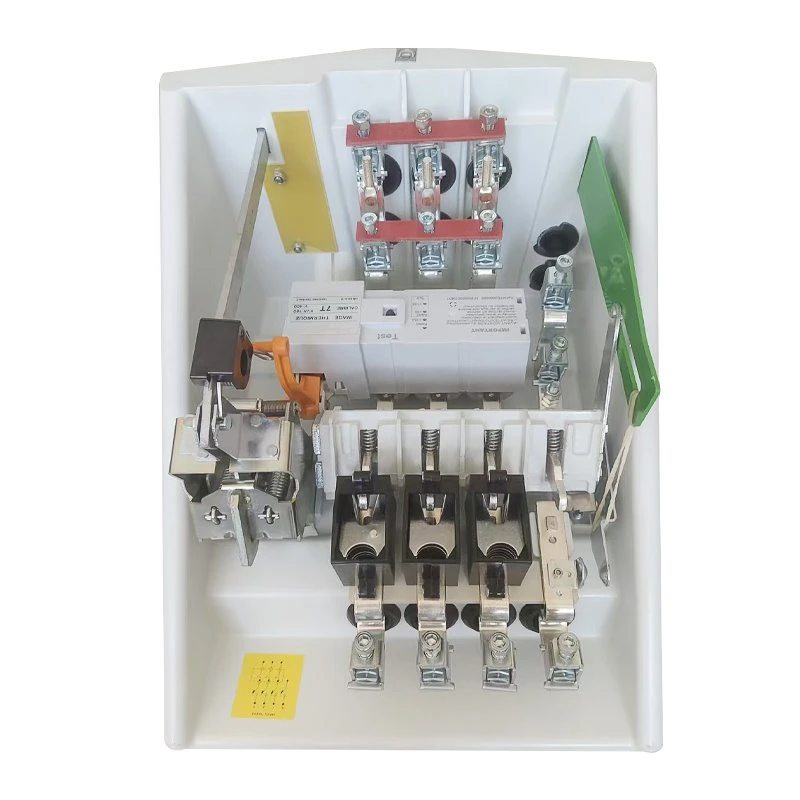

The protection and management of MV/LV transformers in rural areas requires the use of specific circuit breakers adapted to significant load imbalances, thus ensuring the full utilization of installed power even under imbalance conditions. These low voltage pole mounted circuit breakers (4 poles – 3 protected) use air-break technology with metal-partitioned chambers to interrupt the arc.
Benefits
1. Transformer protection (50 kVA or 100 kVA) is more compact and simpler to use than a fuse-based solution.
2. When the low voltage pole mounted circuit breaker is closed, a spark gap limits the potential rise of the low-voltage neutral relative to earth, for a value greater than 10 kV
3. When low voltage pole mounted circuit breakers is open, an electrical connection is made between the transformer neutral and earth.
4. Contact us to define your needs (number of starting points, mounting bracket, linkage type, trigger type, load indicator option, etc.)
Technical Data
+ Type Outdoor - Up to 100kVA
+ Number of poles 4 (3 protected)
+ Rated voltage 440 V
+ Rated current 265 A
+ Frequency 50 Hz
+ Cutout power 6400A
+ Closing power 11700A
+ Number of outputs 2outputs
+ Maximum cable connecting capacity Alu/Cu 50 to 150 mm²
+Enclosure protection index IP 337
Dielectric withstand:
+ Rated power-frequency withstand voltage (1min)
- Between poles and frame (to ground) 10kV
- Between phases 4kV
- Across isolating distance 4kV
+ Rated lightning impulse withstand voltage (1.2/50)
- Between poles and frame (to ground) 20kV
+ Control system Manual

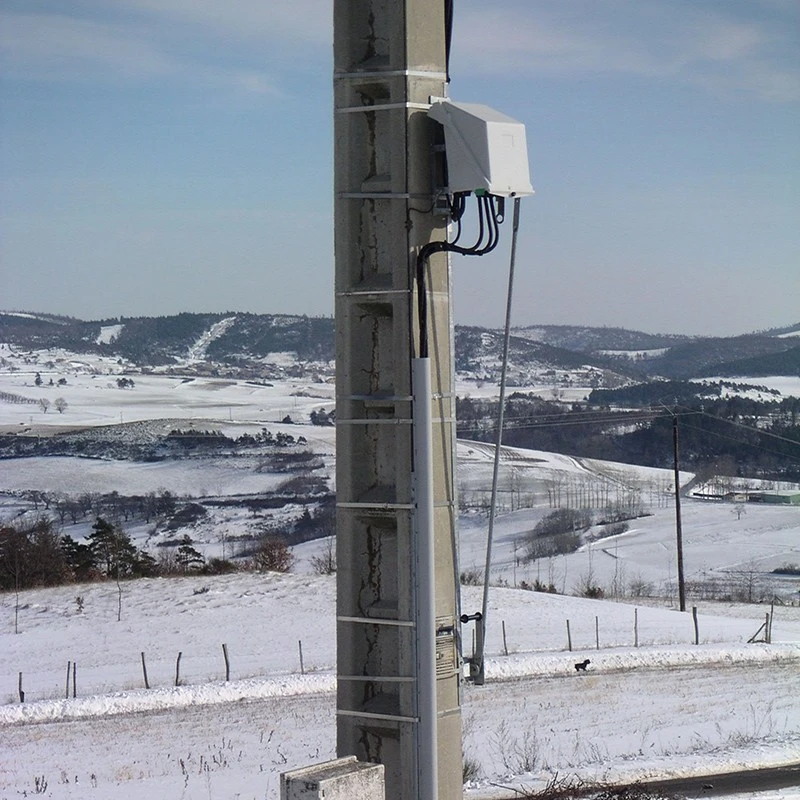

+ Installation on post
