High Pressure Cabinet Pilot Lamp
video
High Pressure Cabinet Pilot Lamp

High Pressure Cabinet Pilot Lamp

High pressure cabinet pilot lamp is used for telecommunications systems, electrical equipment, distribution cabinets and high voltage control cabinets etc. It indicates working status, fault signals, isolation braking positions, and other key indicator signals.

Send Inquiry

Description

Wenzhou Lanen Electrical Co., Ltd. is one of the leading manufacturers and suppliers of high pressure cabinet pilot lamp in China. We are committed to provide high quality customized products with low price. If you're going to buy advanced high pressure cabinet pilot lamp made in China, welcome to get more discount information from our factory.



Description

High pressure cabinet pilot lamp is used for telecommunications systems, electrical equipment, distribution cabinets and high voltage control cabinets etc. It indicates working status, fault signals, isolation braking positions, and other key indicator signals.

High pressure cabinet pilot lamp uses high brightness LED as the light source, which has excellent performance such as long service life, high operational reliability, strong anti vibration, low power consumption, and stable light emission. It is the best energy-saving alternative to traditional tungsten filament lamps and neon lamps.



product-800-800

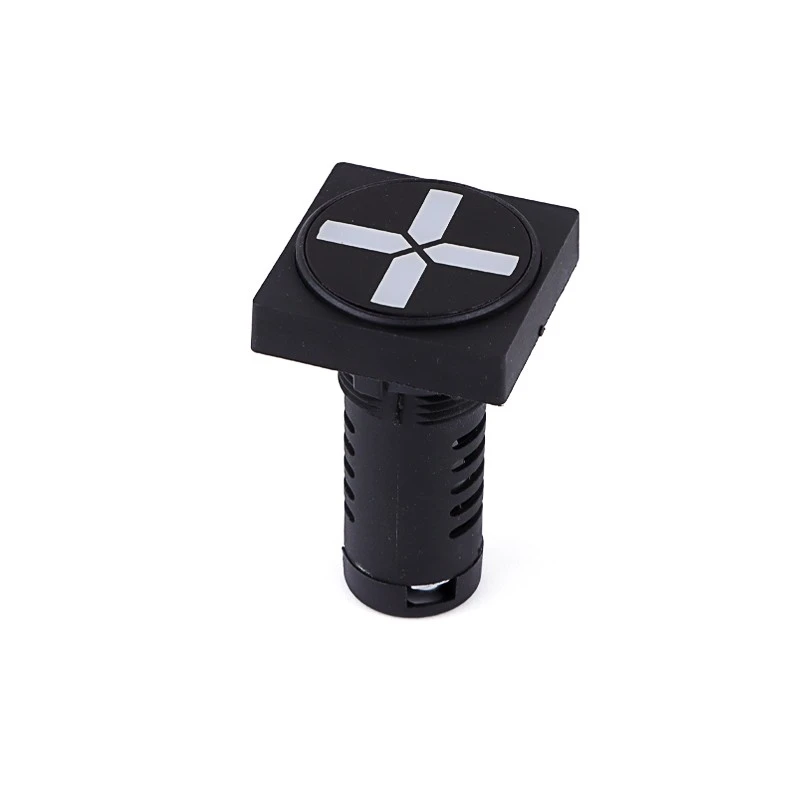

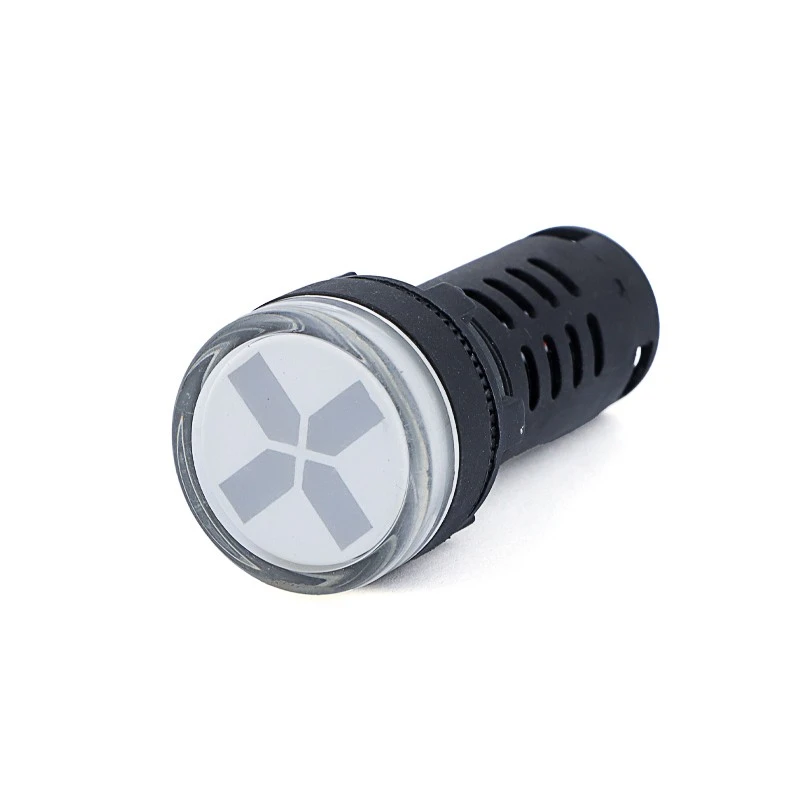

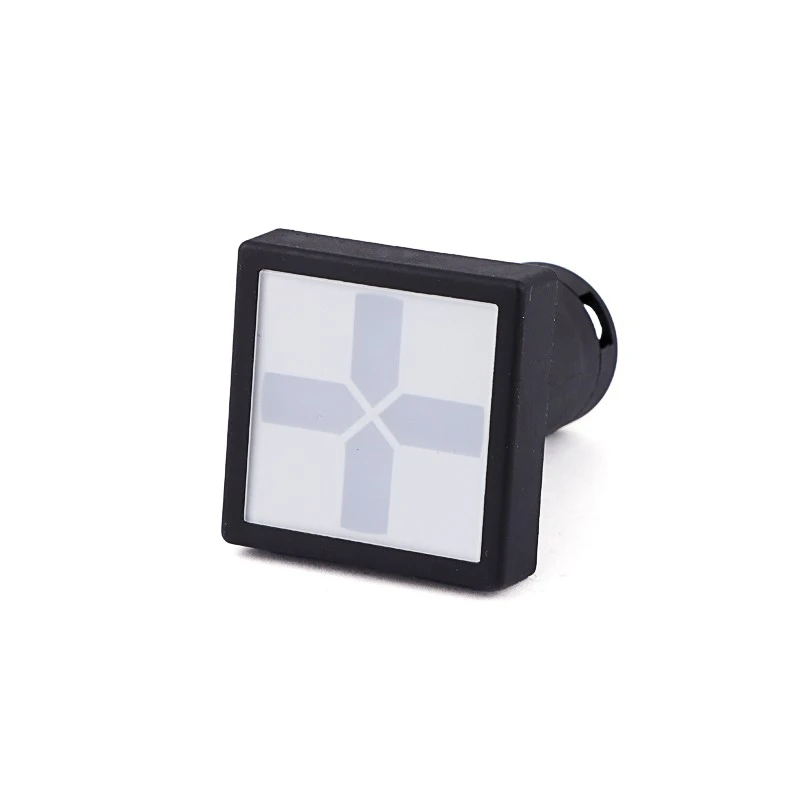

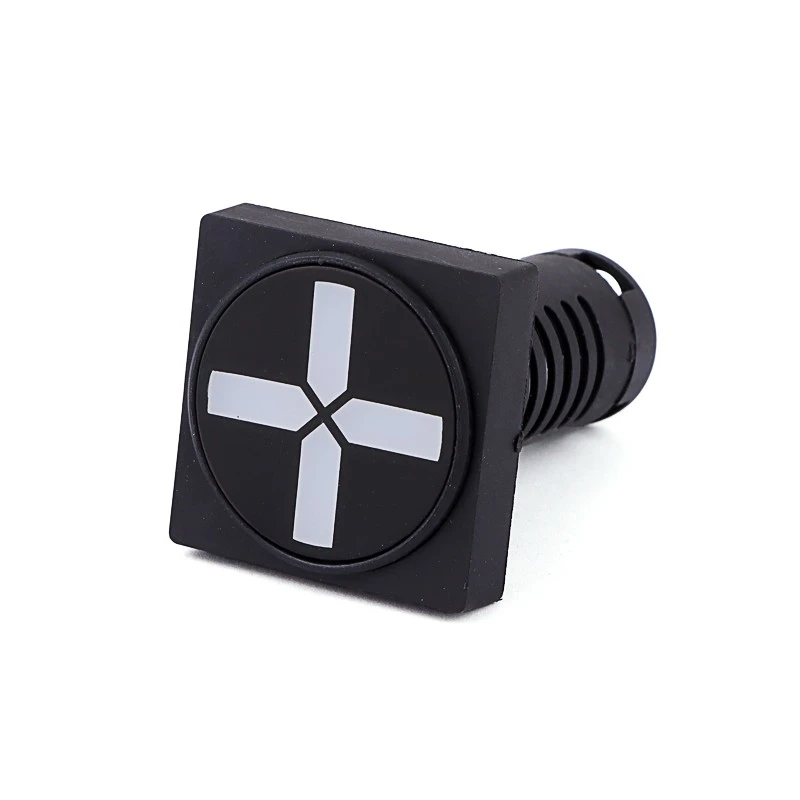

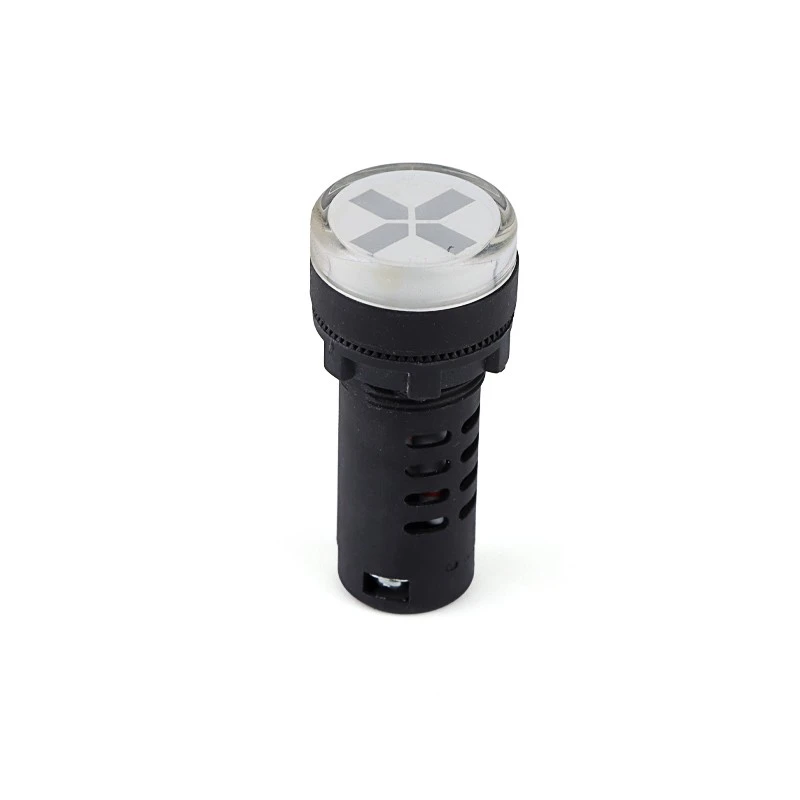

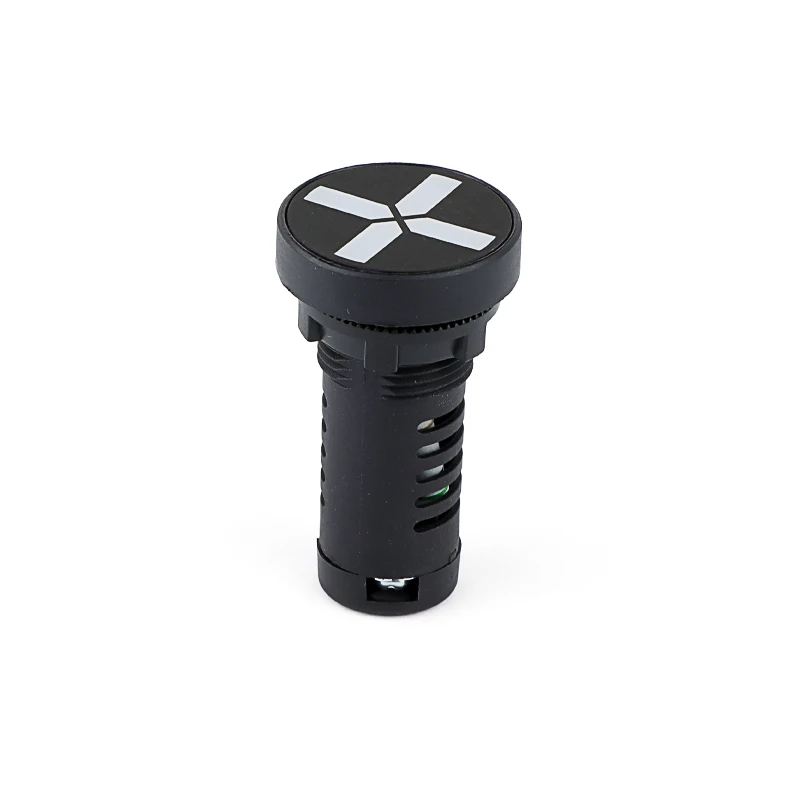

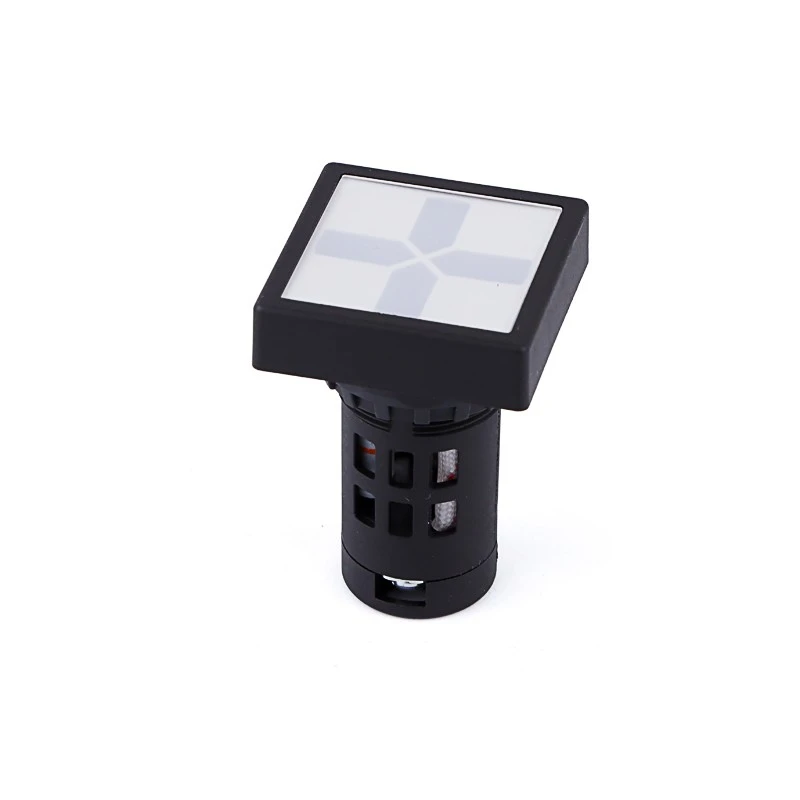

The position indicator light for high-voltage cabinets shows the isolation switch status clearly, so you can easily see whether it's working or not.The lamp head comes in two shapes - square and round - to fit different installation and application needs.It uses standard red and green LEDs, making the working status easy to tell apart at a glance.The standard mounting hole size is 22mm, which is simple to install and works well with most kinds of cabinet panels.High pressure cabinet pilot lamp also uses professional voltage reduction design to keep the light running steadily under different voltages.Besides, the anti-interference voltage can be customized for special working environments, making the whole unit more stable and reliable.
product-800-800



Technical Parameter

Continuous working life ≥ 30000 hours, reducing frequent replacement and maintenance costs. For voltages below 110V, the allowable voltage fluctuation is ± 10%, and for voltages above 110V, it is ± 20% to adapt to unstable power supply conditions. When Ui ≤ 60V, the insulation resistance reaches 5M Ω, and when 60V ≤ Ui ≤ 690V, it reaches 50M Ω. The power frequency withstand voltage is 2.5KV, ensuring excellent electrical safety, insulation performance, and operational stability in high voltage and complex electrical environments.
product-669-365
