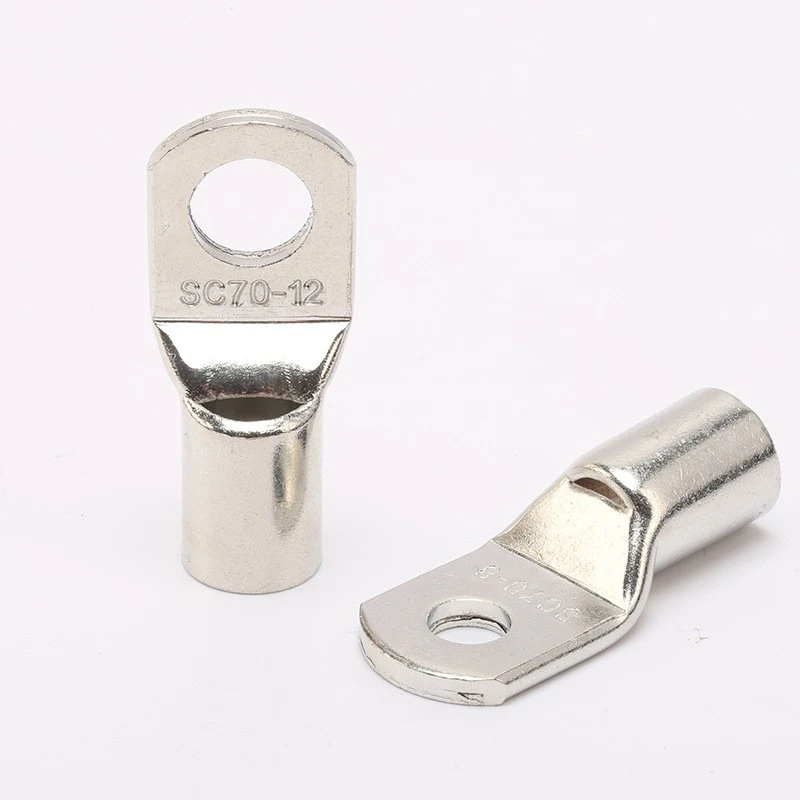

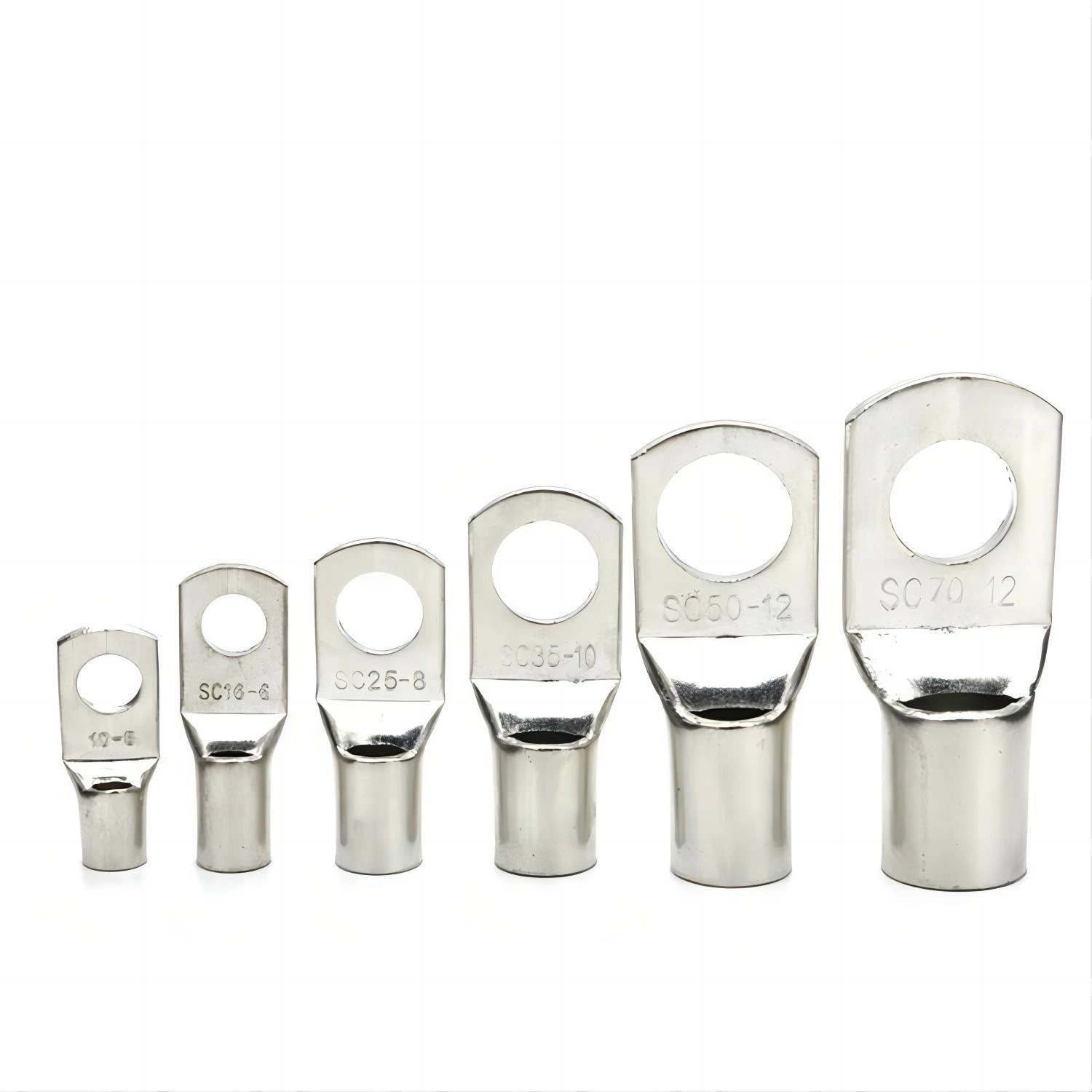

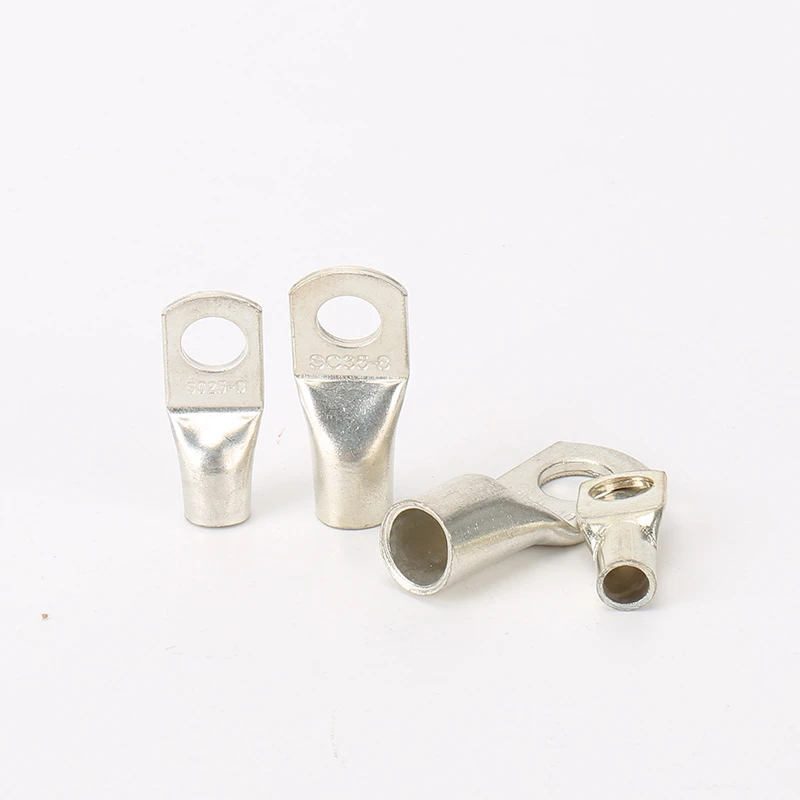

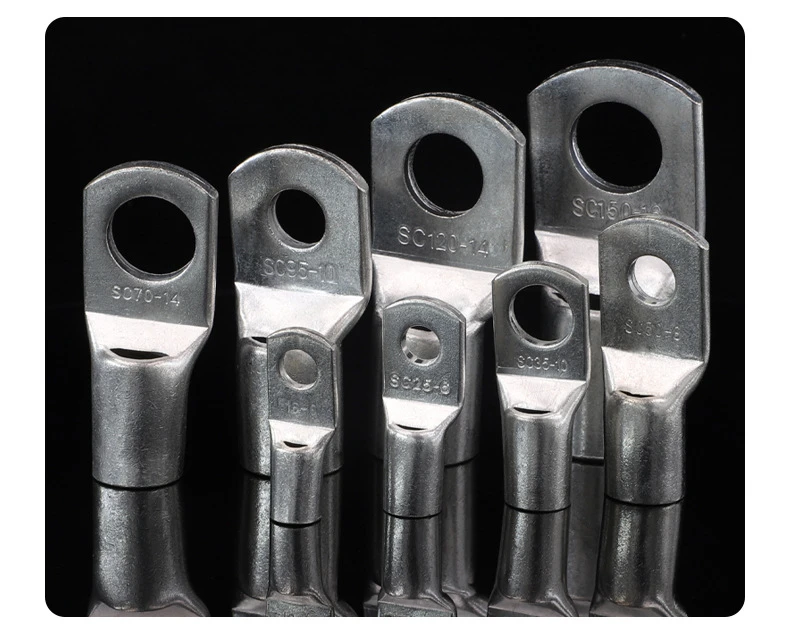

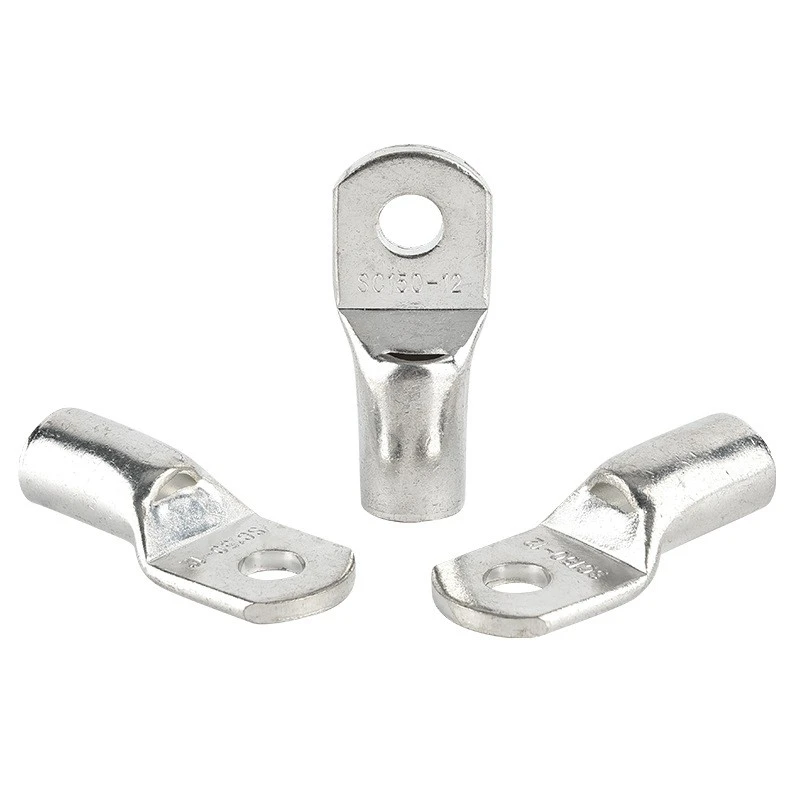

SC Copper Terminal Lugs
SC copper terminal lugs are high quality connection fittings，it's designed for power system applications. They are extensively used in power cables and various electrical devices, the range of copper conductors is from 1.5mm² to 1000mm². These lugs ensure steady and smooth power flow, perfectly suited for power distribution projects, electrical installations and industrial operational setups.
Description
Wenzhou Lanen Electrical Co., Ltd. is one of the leading manufacturers and suppliers of sc copper terminal lugs in China. We are committed to provide high quality customized products with low price. If you're going to buy advanced sc copper terminal lugs made in China, welcome to get more discount information from our factory.
Description
SC copper terminal lugs are high quality connection fittings,it's designed for power system applications. They are extensively used in power cables and various electrical devices, the range of copper conductors is from 1.5mm² to 1000mm². These lugs ensure steady and smooth power flow, perfectly suited for power distribution projects, electrical installations and industrial operational setups.
These SC copper terminal lugs are made from premium T2 copper pipes,Its purity is above 99.9%. Every piece goes through precision processing and full overall tin plating treatment.These lugs own great electrical conductivity, ultra-low resistance and strong load capacity. They help cut down power loss greatly and keep electricity transferring steadily all the time.
The outer layer of full tin-coated form the solid protective film. It works really well against oxidation and corrosion, It is very effective against oxidation and corrosion, and can prevent copper parts from turning yellow when used outdoors or in humid conditions for a long time.
SC copper terminal lugs have a wide operating temperature range of -55 ℃ to 150 ℃, and maintain stable performance under extreme cold and high temperature working conditions, with strong environmental adaptability.They have compact structure, firm crimping, easy installation and achieve tight wiring connections.
SC copper connectors have excellent mechanical and electrical properties, They are widely used in distribution cabinets, electrical equipment, new energy facilities, and industrial automation systems, becoming an ideal choice for safe and reliable electrical connections.

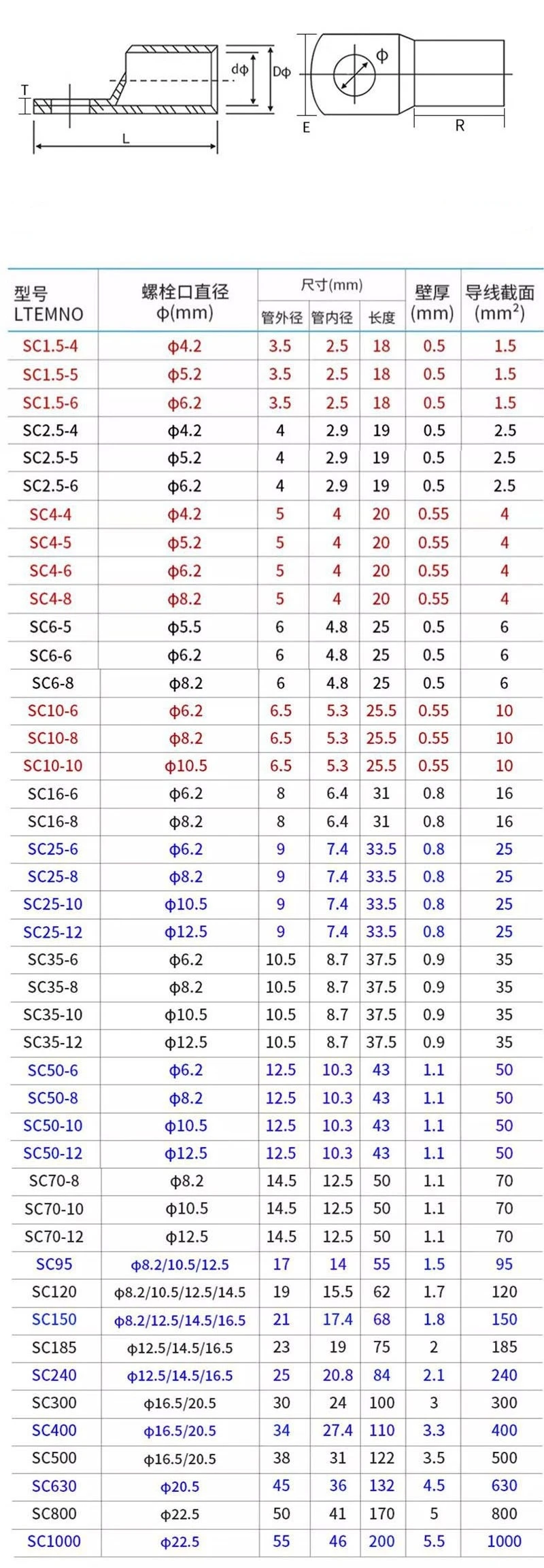

Parameter
|
Type |
Bolt diameter (d2 mm) |
Dimension(mm) |
Section of load (mm) |
|||
|
dØ |
D Ø |
L1 |
L |
|||
|
SC300-16 |
17.0 |
24.0 |
30.0 |
44.0 |
100.0 |
300 |
|
SC300-20 |
21.0 |
24.0 |
30.0 |
44.0 |
102.0 |
2.5 |
|
SC400-16 |
17.0 |
27.0 |
34.0 |
46.0 |
102.0 |
400 |
|
SC 400-20 |
21.0 |
27.0 |
34.0 |
46.0 |
113.0 |
400 |
|
SC 500-16 |
17.0 |
30.0 |
38.0 |
50.0 |
123.0 |
500 |
|
SC 500-20 |
21.0 |
30.0 |
38.0 |
50.0 |
123.0 |
500 |
|
SC 630-20 |
21.0 |
35.0 |
45.0 |
56.0 |
135.0 |
630 |
|
SC 800-22 |
50 |
39.0 |
50.0 |
60.0 |
170.0 |
800 |
|
SC 1000-22 |
56 |
44.0 |
56.0 |
87.0 |
200.0 |
1000 |
Hot Tags: sc copper terminal lugs, China sc copper terminal lugs manufacturers, suppliers, factory
